Profile of series I

Assembly heat sink, hight efficiency.

Advanced Search

Advanced Search ;

Fill the fields to find the best profile for your needs

Please enter item name in ID field and press enter to start searching our database.
If you don’t know your item ID, please use our search filters.

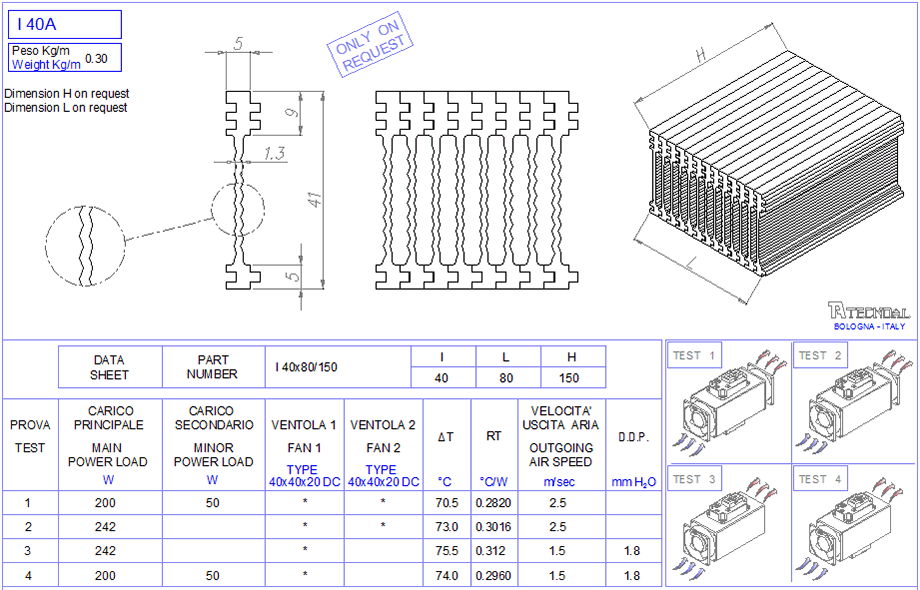

I40A

41 mm 0.3 kg 8 mm 0,100 mm

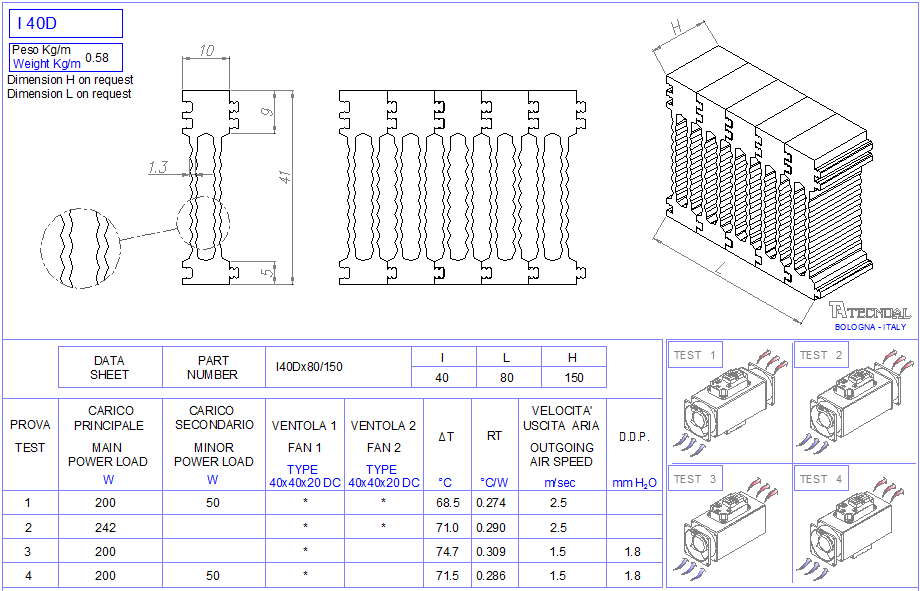

i40D

41 mm 0.58 kg 10 mm 0,100 mm

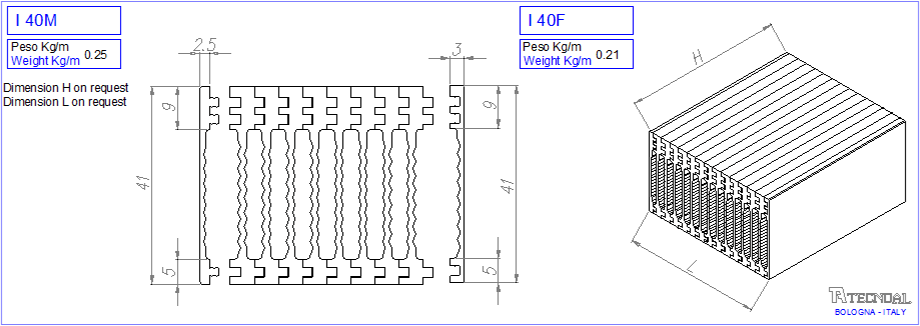

I40M

41 mm 0.25 kg 2.5 mm 0,100 mm

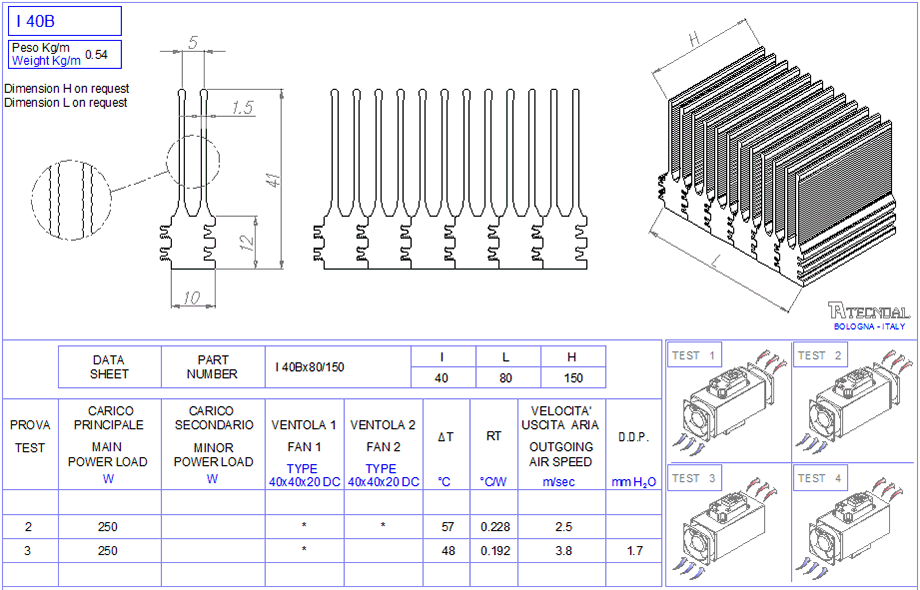

I40B

41 mm 0.54 kg 10 mm 0,100 mm

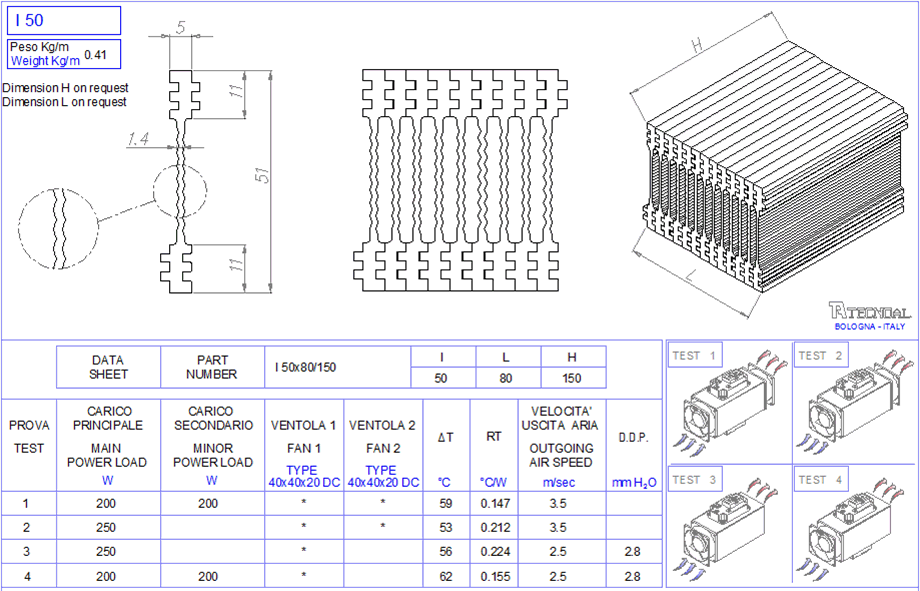

I50

51 mm 0.41 kg 5 mm 0,100 mm

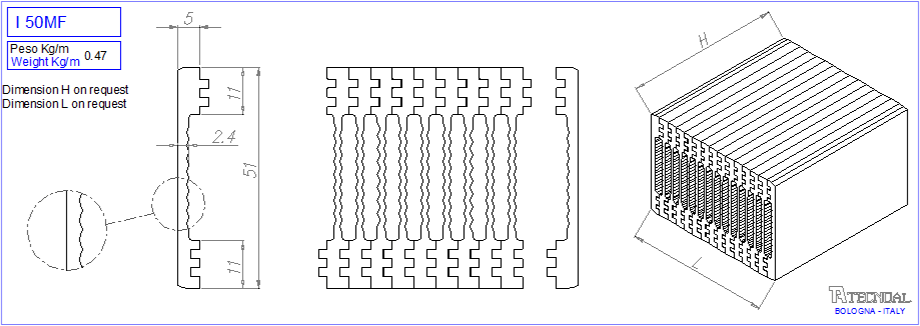

i50MF

51 mm 0.47 kg 5 mm 0,100 mm

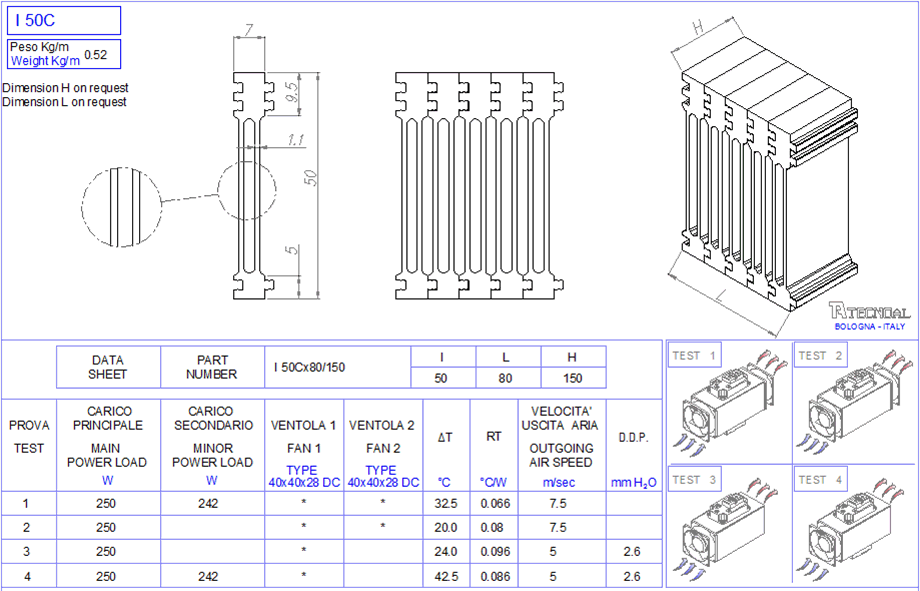

I50C

50 mm 0.52 kg 7 mm 0,100 mm

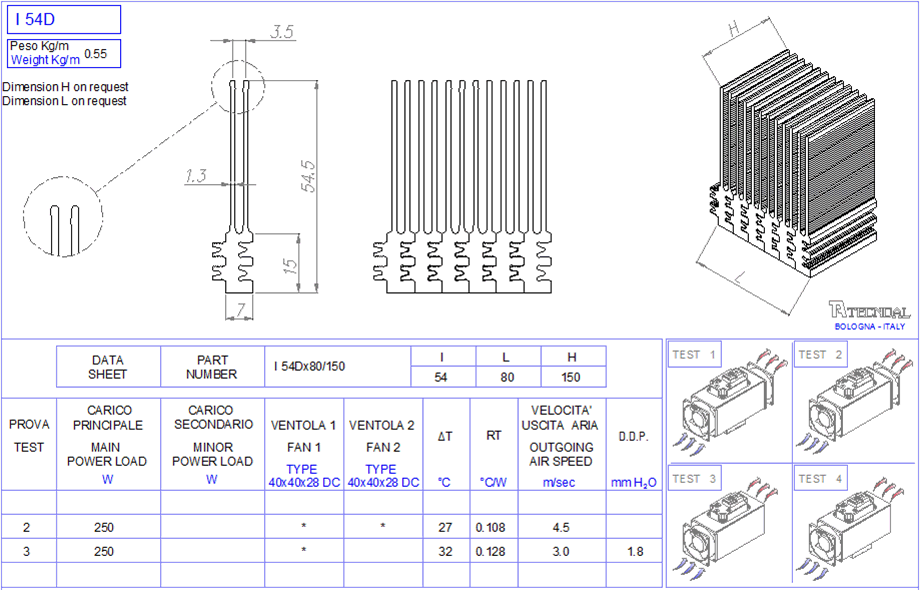

I54D

54 mm 0.55 kg 7 mm 0,100 mm

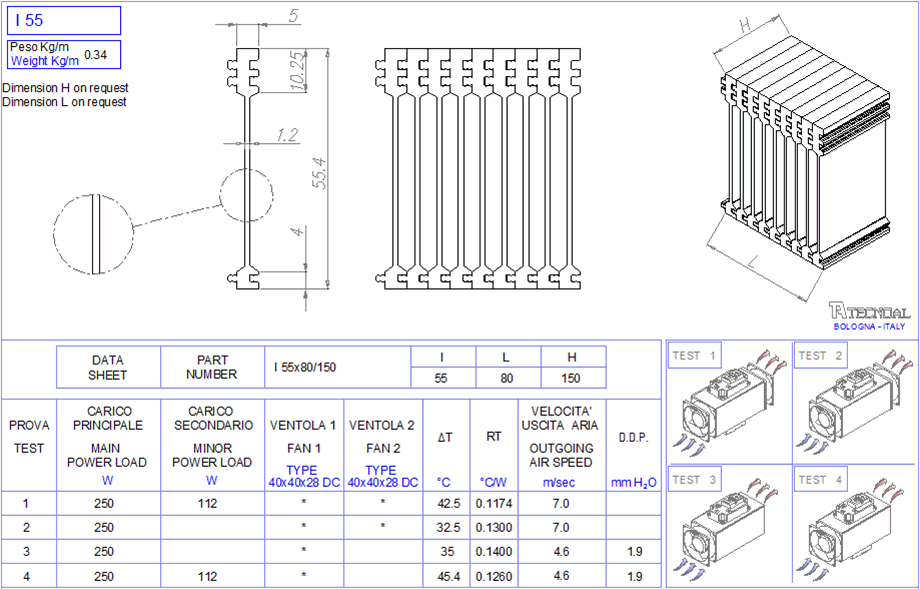

I55

55 mm 0.34 kg 5 mm 0,100 mm

I57

57 mm 0.4 kg 5.5 mm 0,100 mm

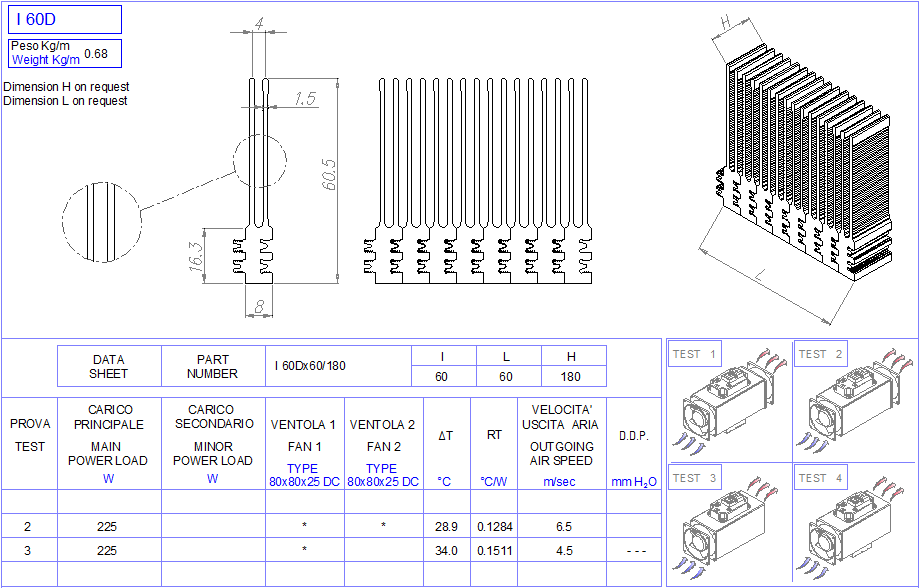

I60D

60 mm 0.68 kg 8 mm 0,100 mm

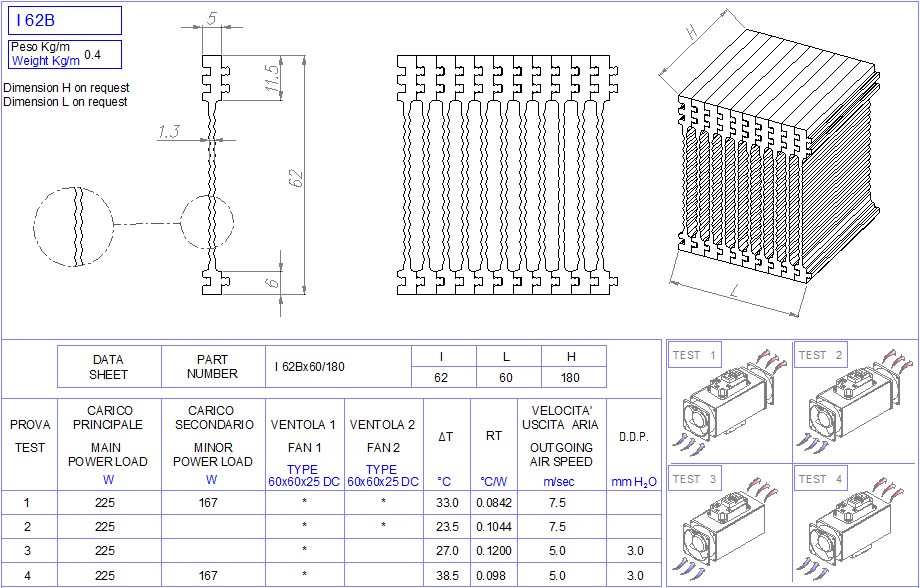

I62B

62 mm 0.4 kg 5 mm 0,100 mm

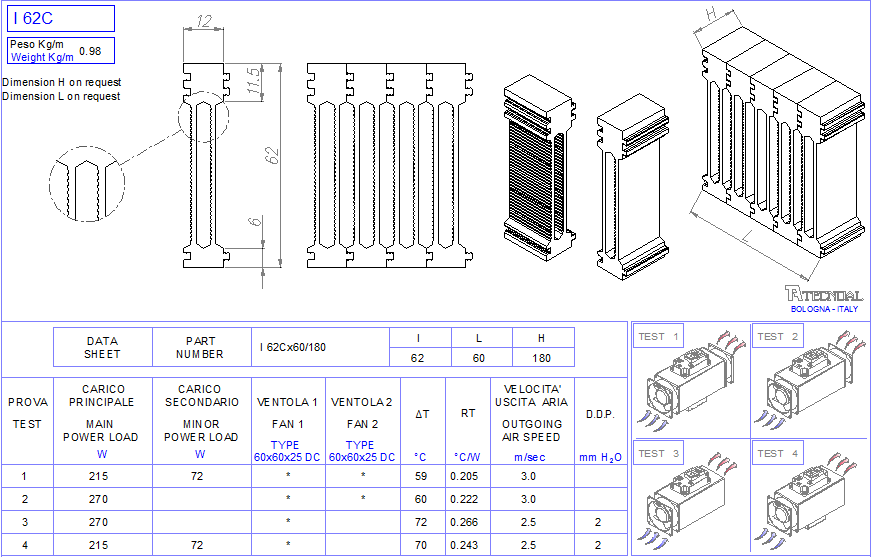

I62C

62 mm 0.98 kg 12 mm 0,100 mm

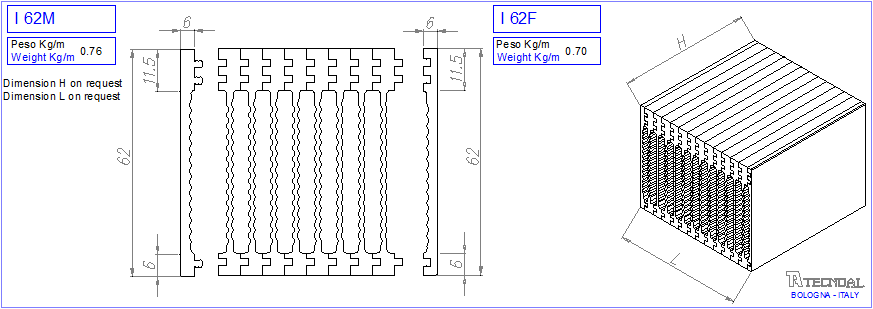

I62M

62 mm 0.76 kg 6 mm 0,100 mm

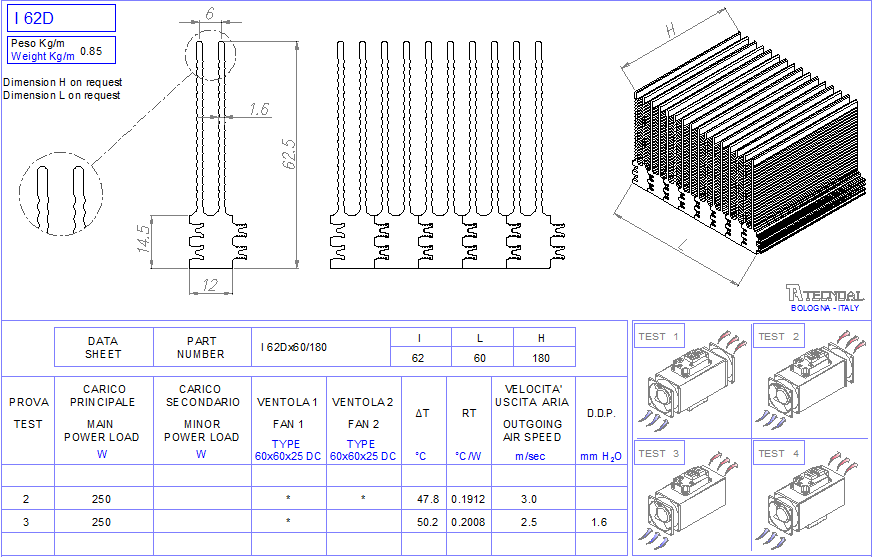

I62D

62 mm 0.85 kg 12 mm 0,100 mm

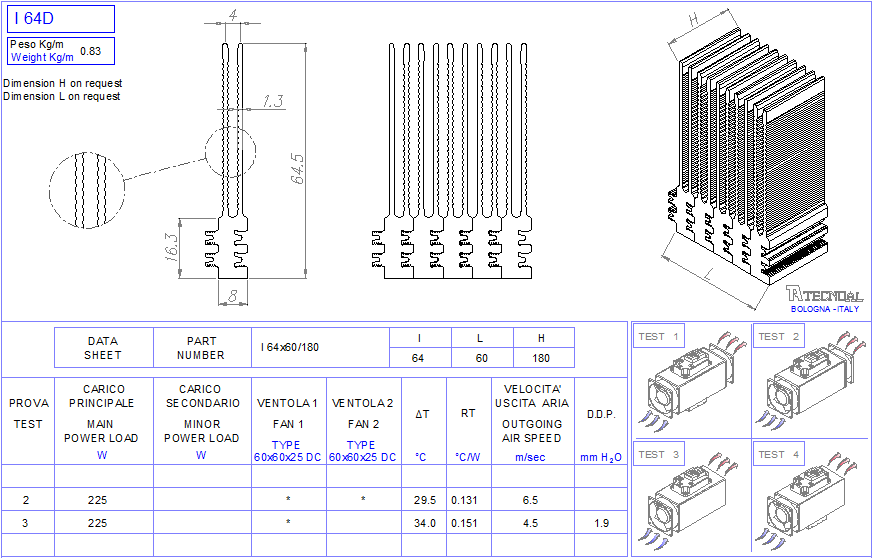

I64D

64 mm 0.83 kg 8 mm 0,100 mm

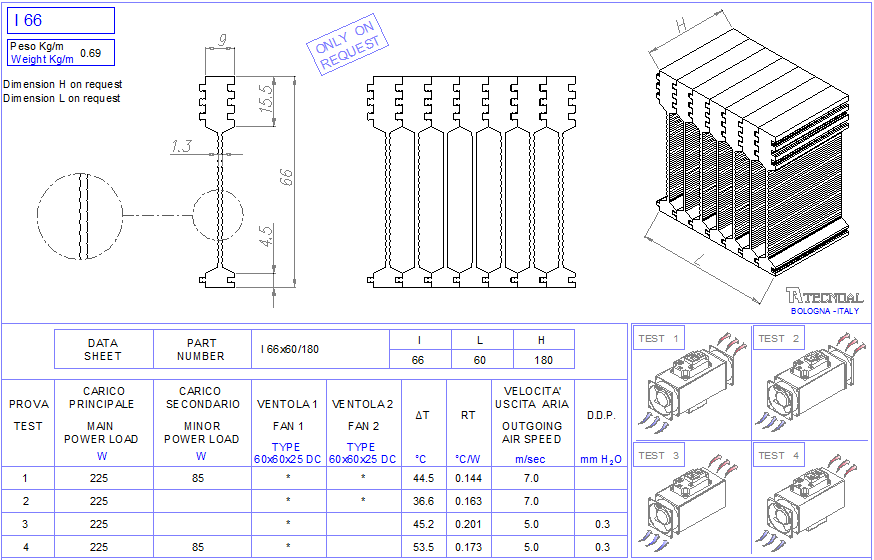

I66

66 mm 0.69 kg 9 mm 0,100 mm

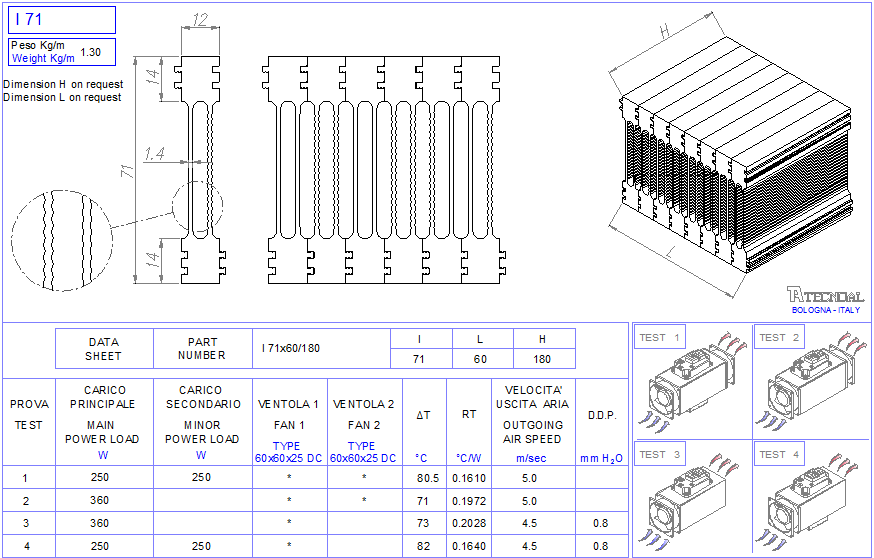

I71

71 mm 1.3 kg 12 mm 0,100 mm

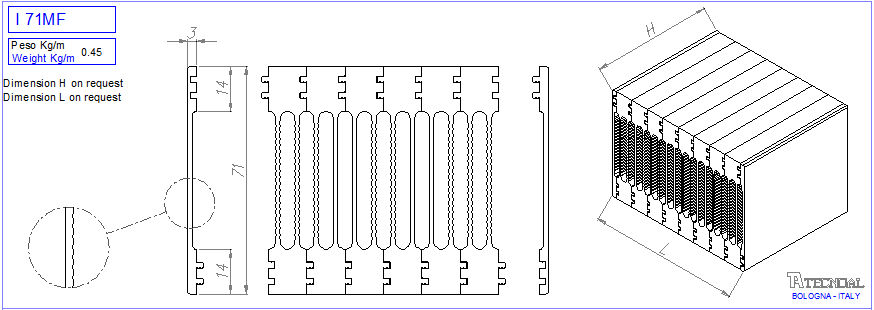

I71MF

71 mm 0.45 kg 3 mm 0,100 mm

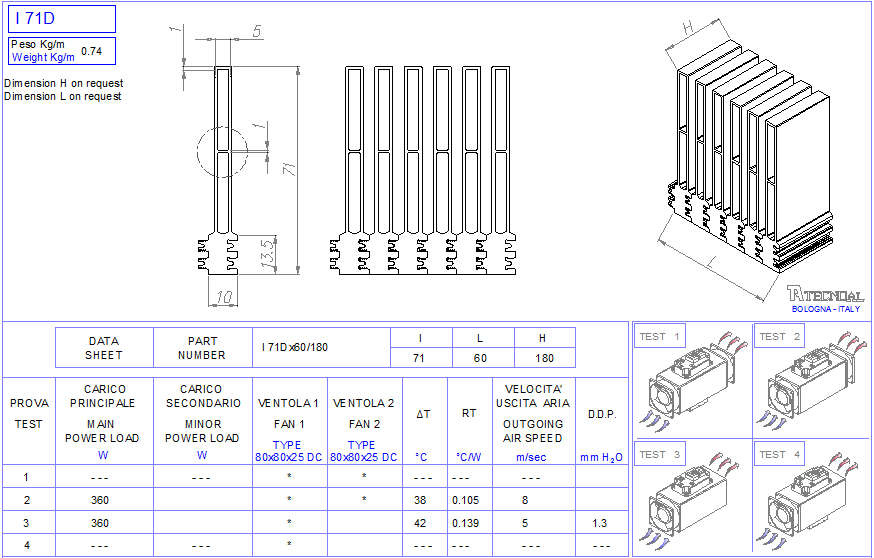

I71D

71 mm 0.74 kg 10 mm 0,100 mm

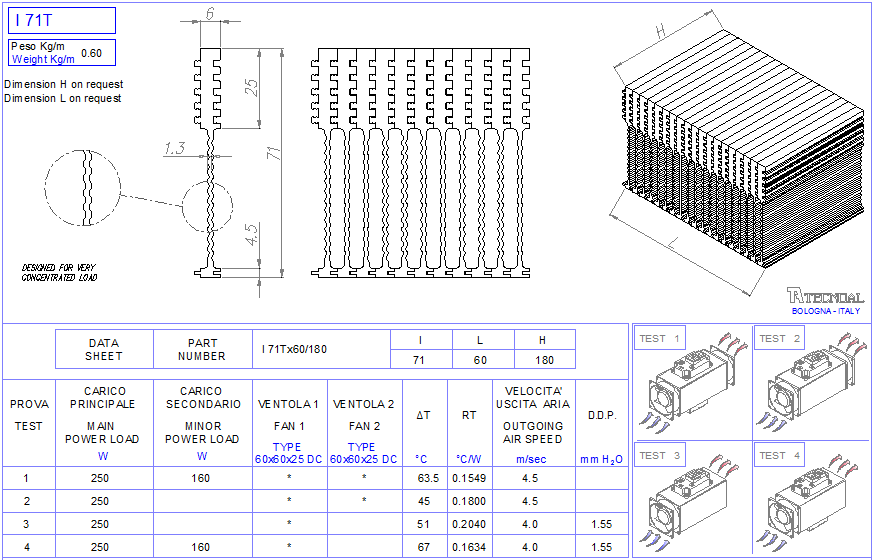

I71T

71 mm 60 kg 6 mm 0,100 mm

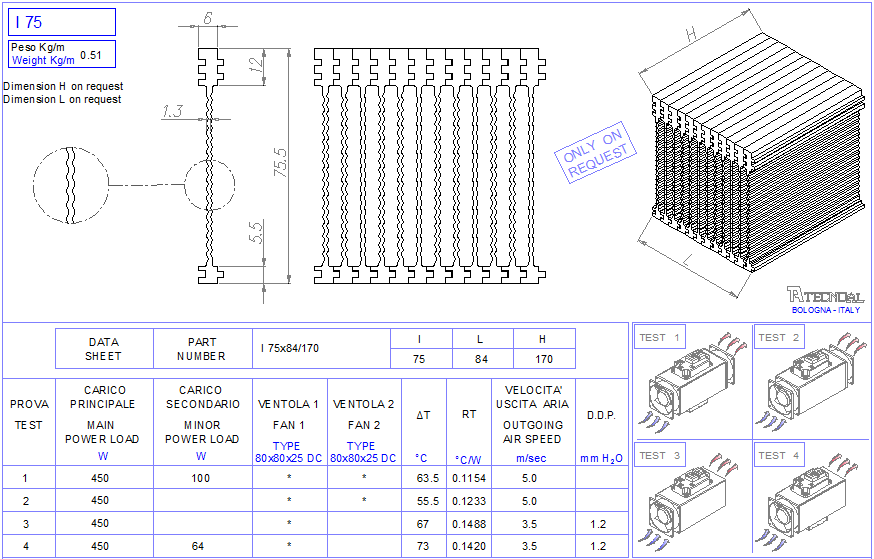

I75

75 mm 0.51 kg 6 mm 0,100 mm

I75A

75 mm 0.56 kg 6 mm 0,100 mm

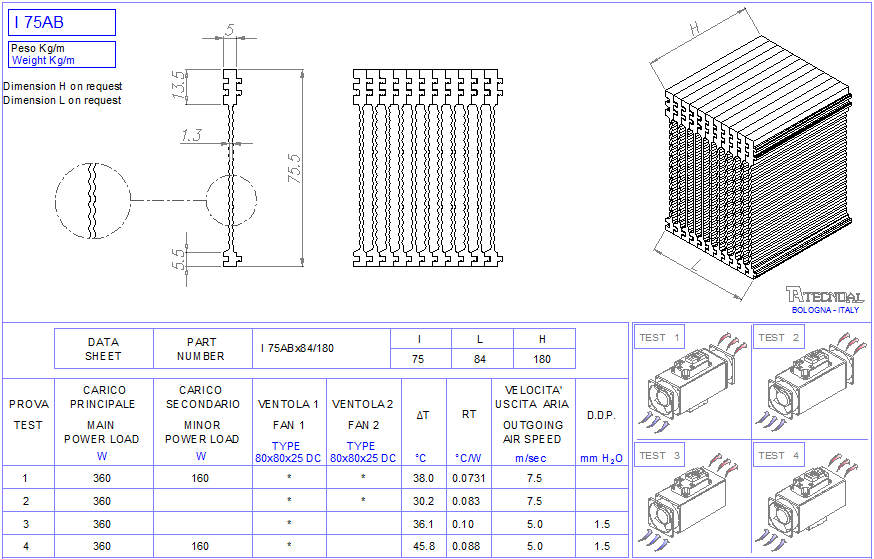

I75AB

75 mm 0.56 kg 5 mm 0,100 mm

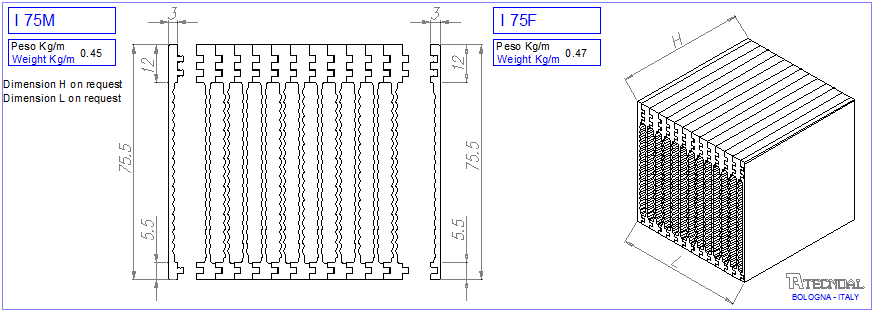

I75M

75 mm 0.75 kg 3 mm 0,100 mm

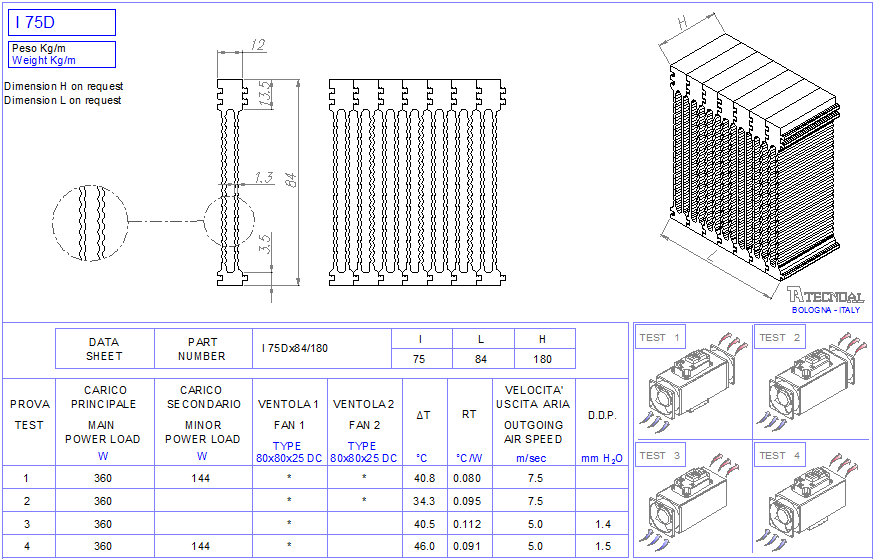

I75D

75 mm 1.2 kg 12 mm 0,100 mm

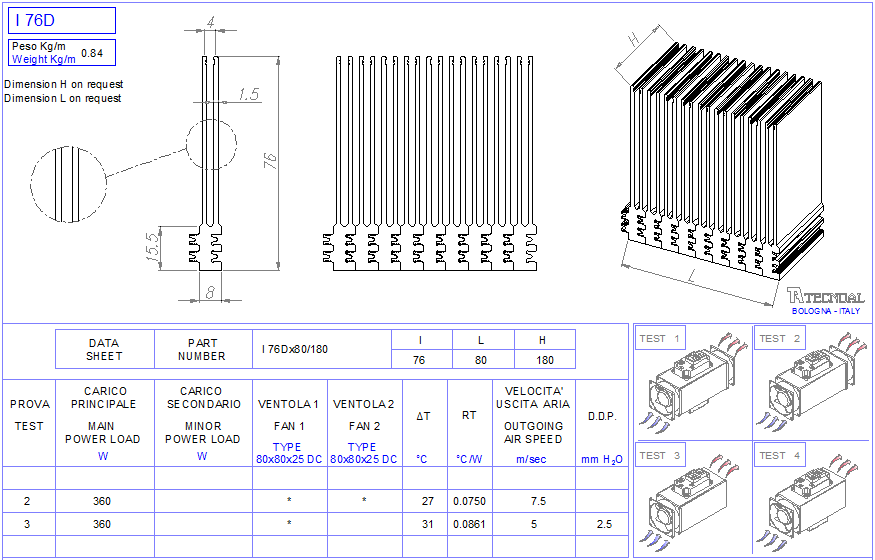

I76D

76 mm 0.84 kg 8 mm 0,100 mm

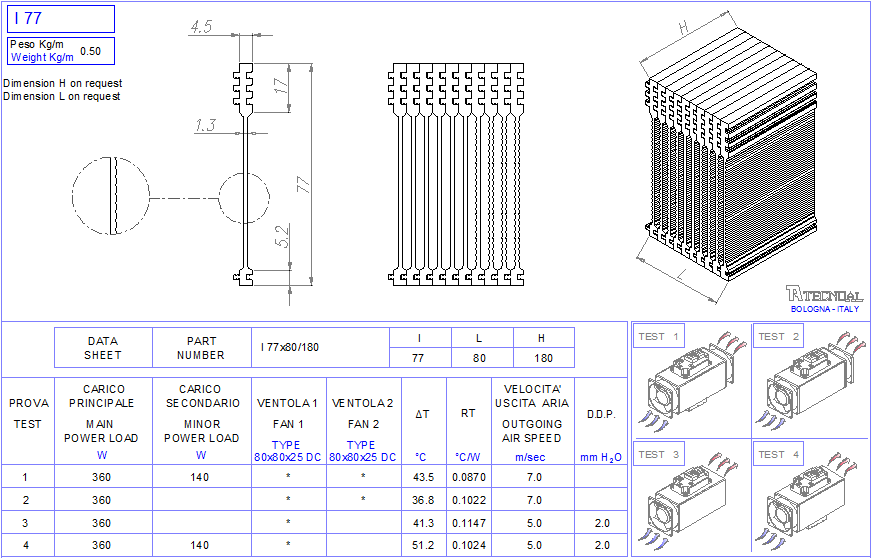

I77

77 mm 0.5 kg 4.5 mm 0,100 mm

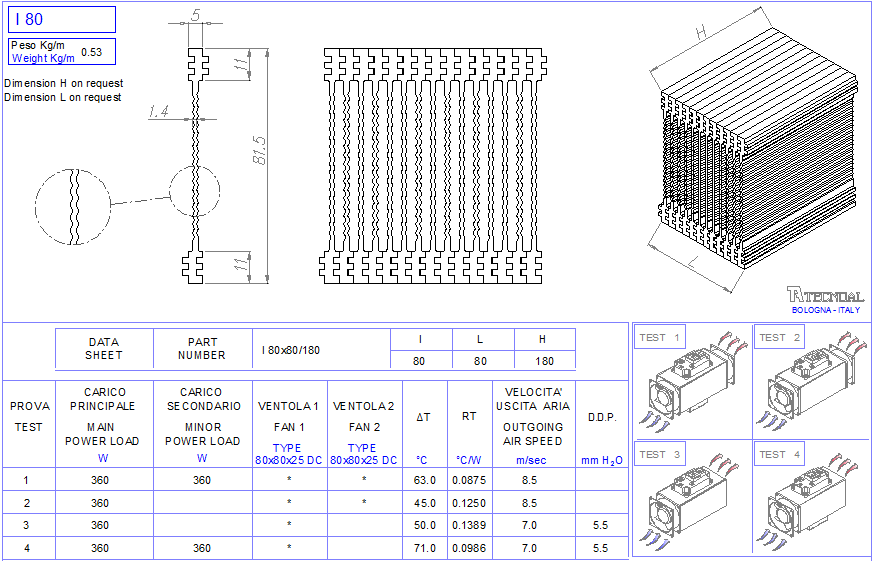

I80

81 mm 0.53 kg 5 mm 0,100 mm

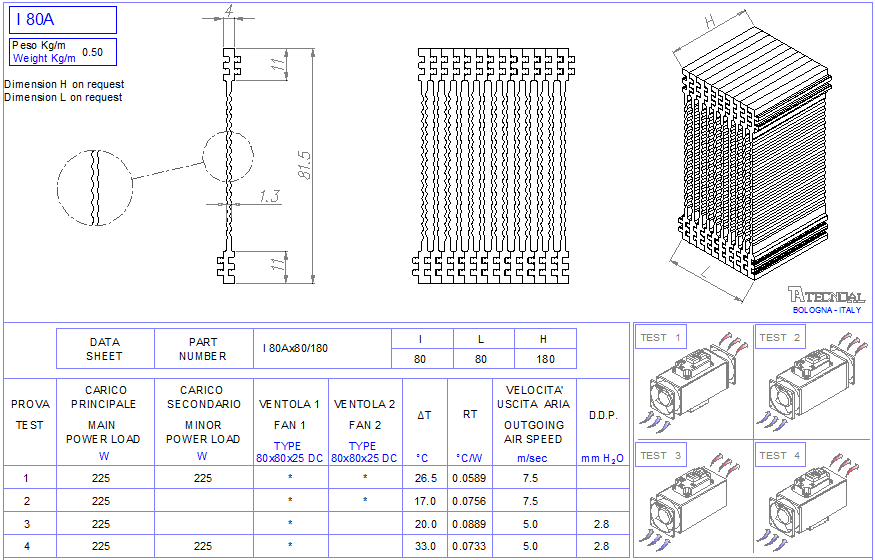

I80A

81 mm 0.5 kg 4 mm 0,100 mm

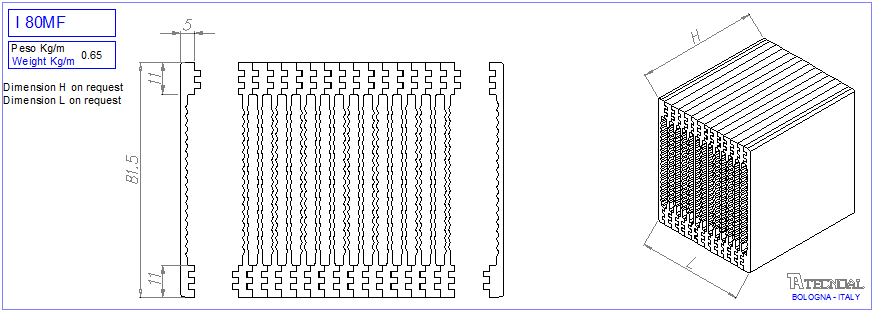

I80MF

81 mm 0.65 kg 5 mm 0,100 mm

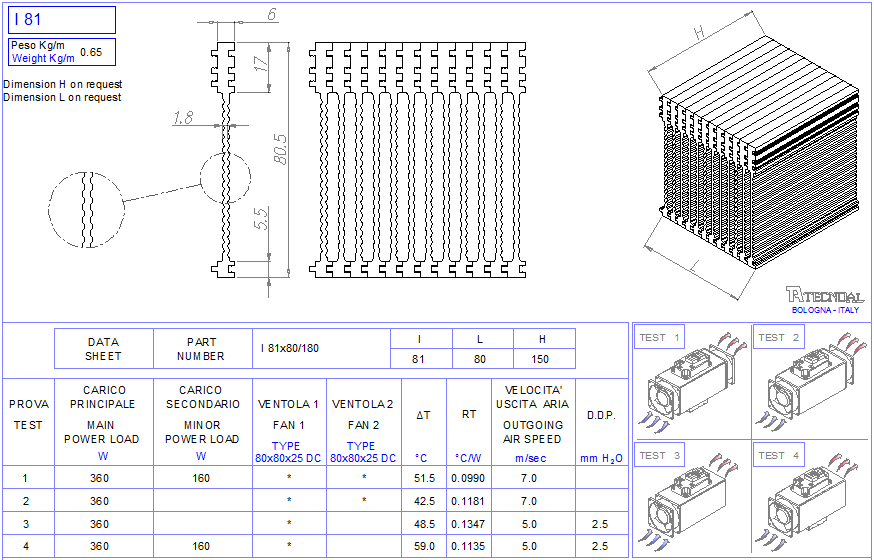

I81

80 mm 0.65 kg 6 mm 0,100 mm

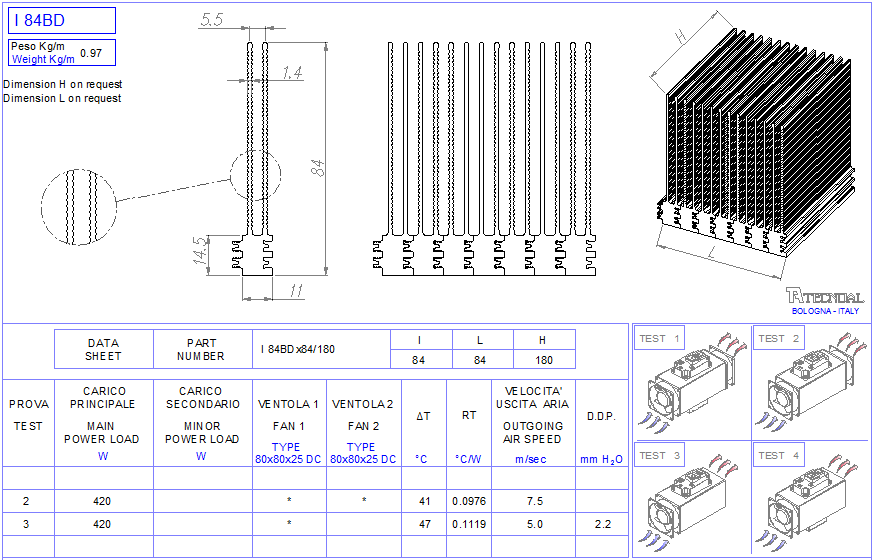

I84BD

84 mm 0.97 kg 11 mm 0,100 mm

I84

84 mm 0.54 kg 6 mm 0,100 mm

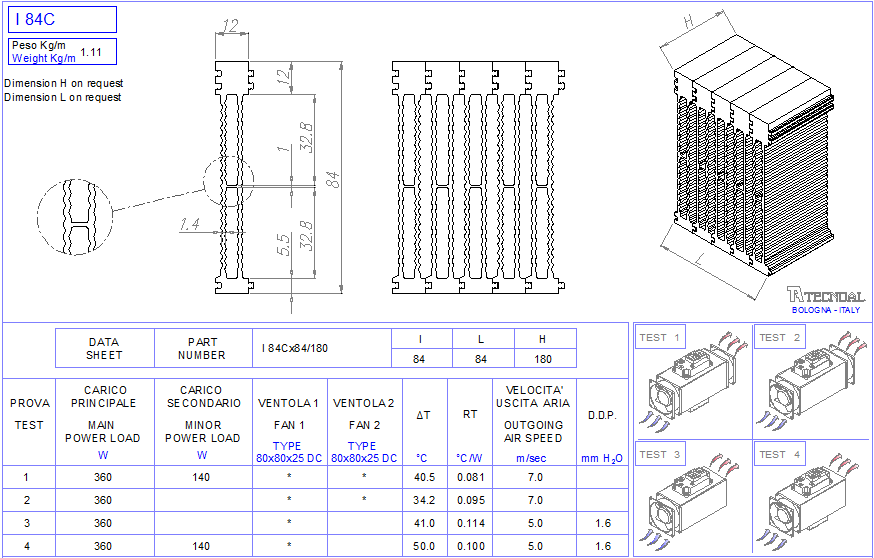

I84C

84 mm 1.11 kg 12 mm 0,100 mm

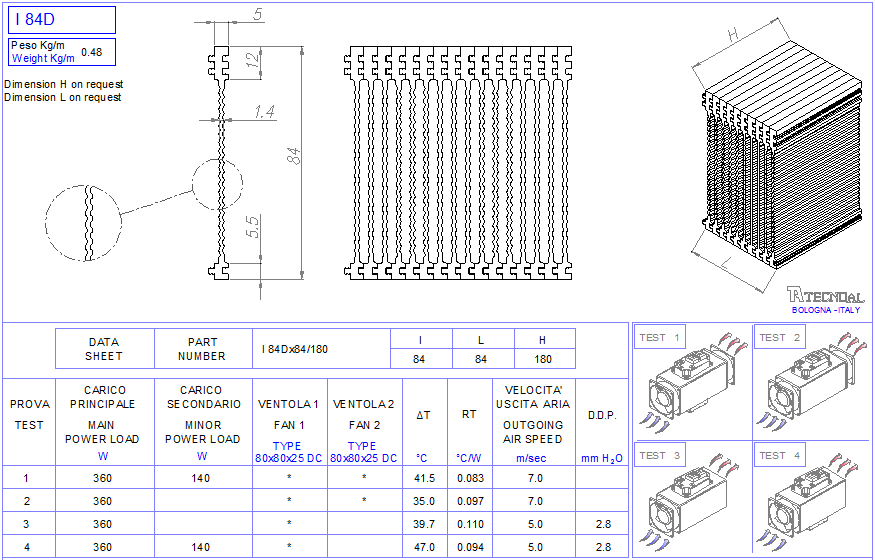

I84D

84 mm 0.48 kg 5 mm 0,100 mm

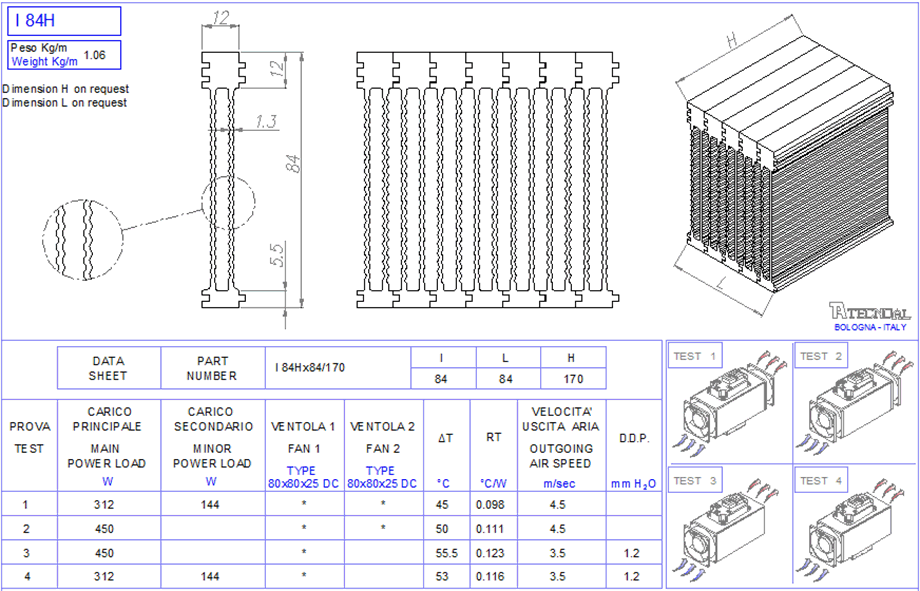

I84H

84 mm 1.06 kg 12 mm 0,100 mm

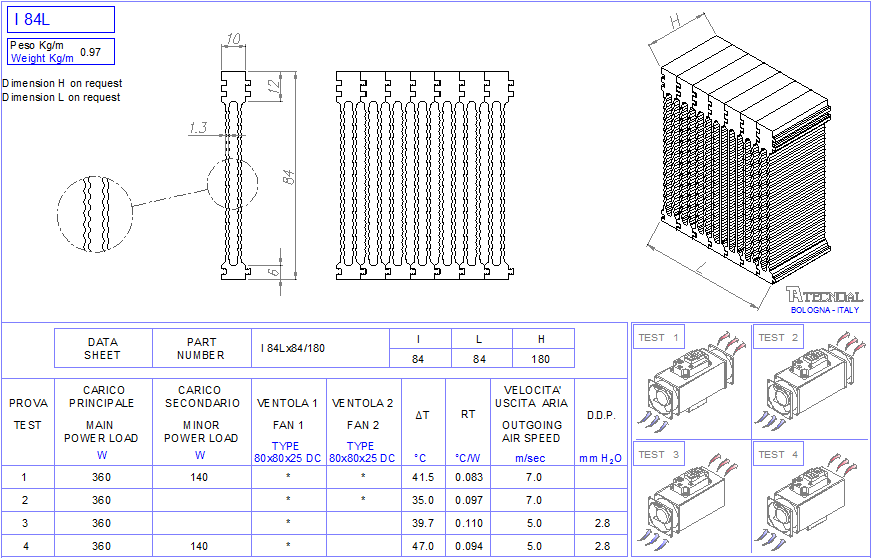

I84L

84 mm 0.97 kg 10 mm 0,100 mm

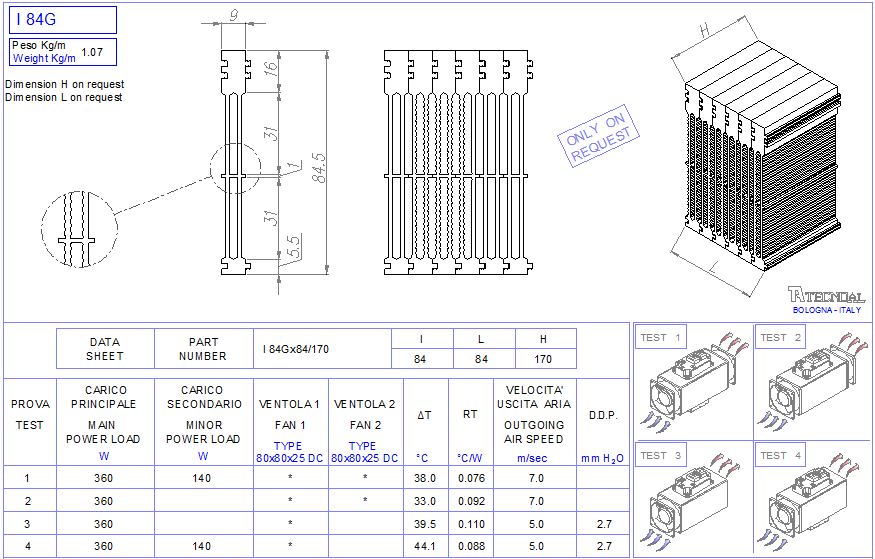

I84G

84 mm 1.07 kg 9 mm 0,100 mm

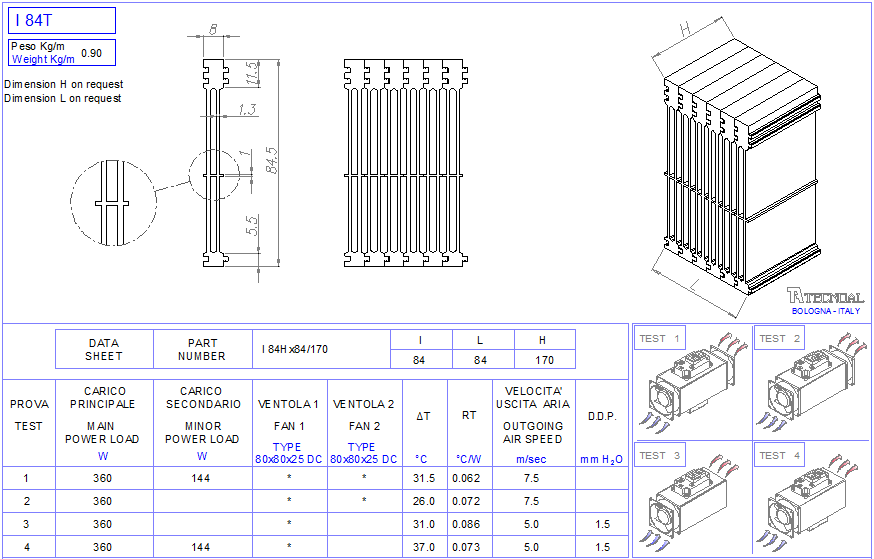

I84T

84 mm 0.9 kg 85 mm 0,100 mm

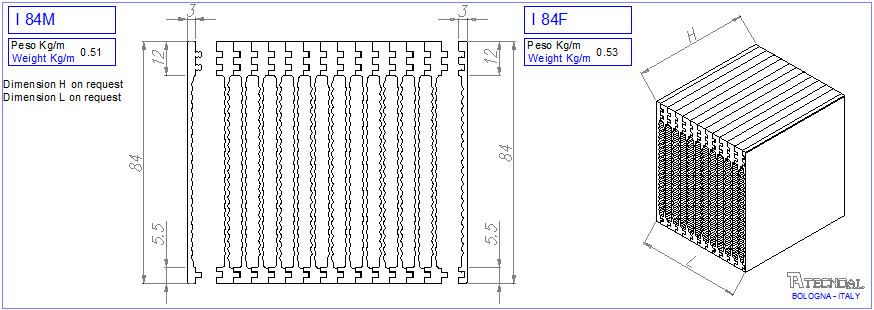

I84M

84 mm 0.51 kg 3 mm 0,100 mm

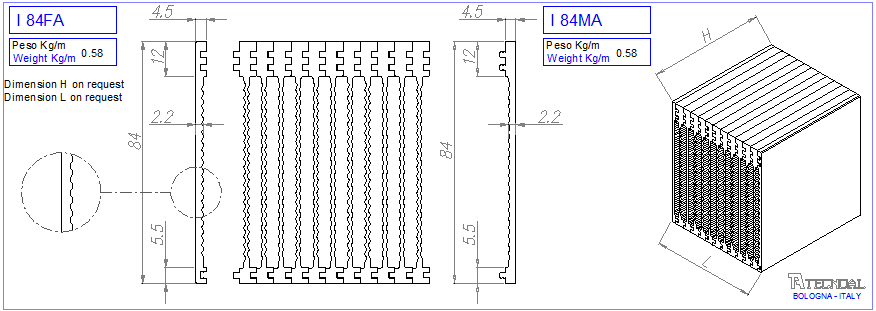

I84MA

84 mm 0.58 kg 4.5 mm 0,100 mm

I85B

85 mm 0.58 kg 6 mm 0,100 mm

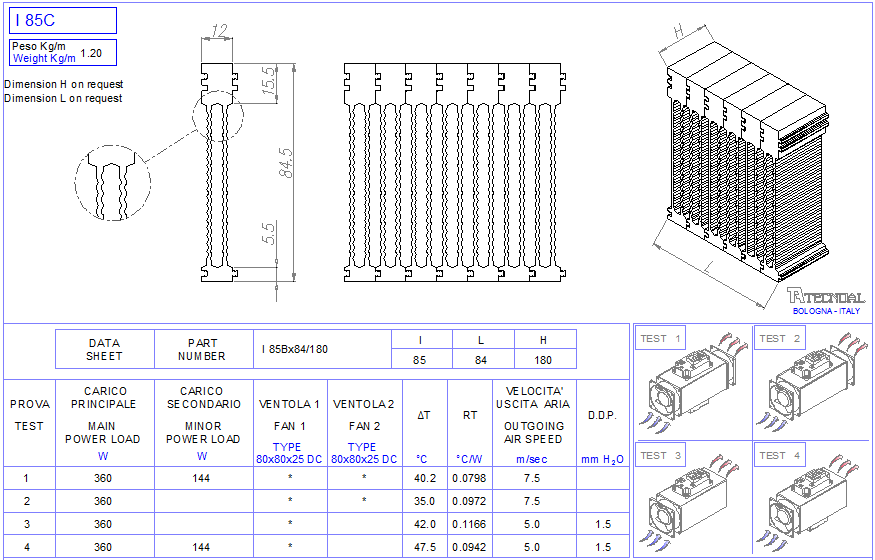

I85C

85 mm 1.2 kg 12 mm 0,100 mm

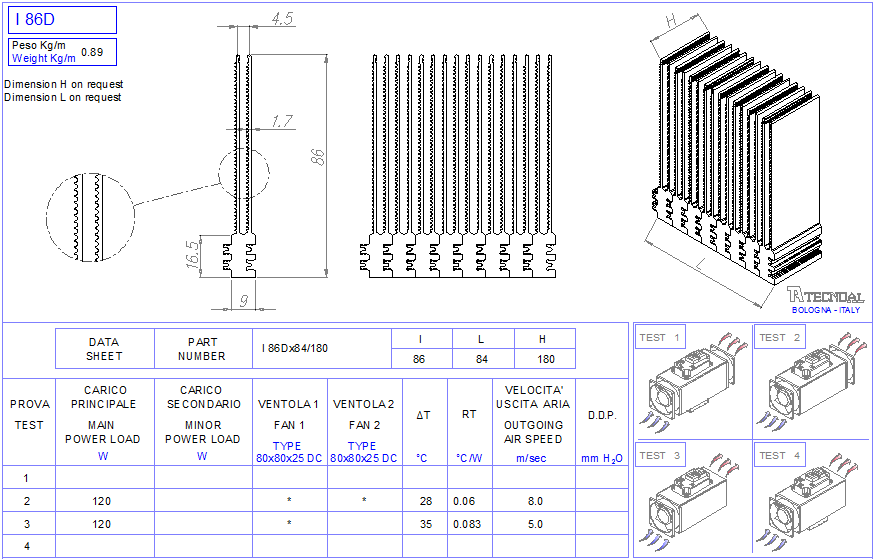

I86D

86 mm 89 kg 9 mm 0,100 mm

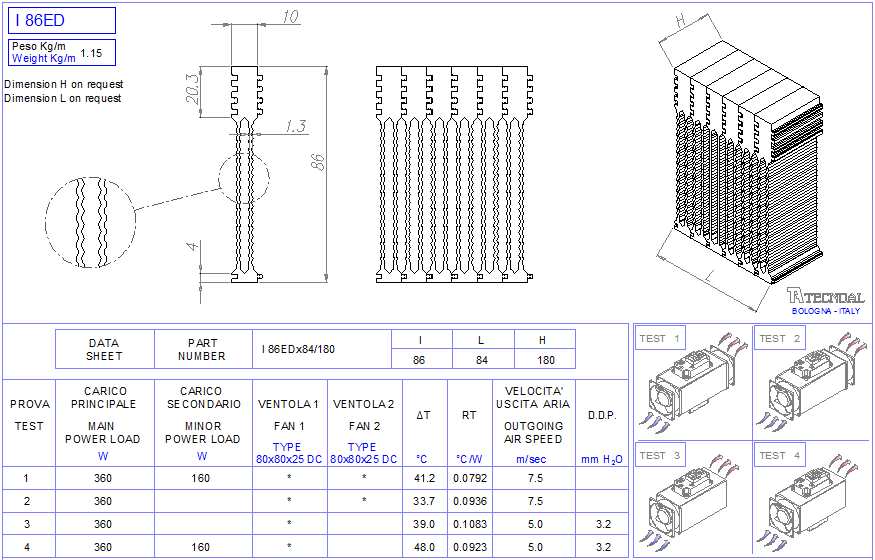

I86ED

86 mm 1.15 kg 10 mm 0,100 mm

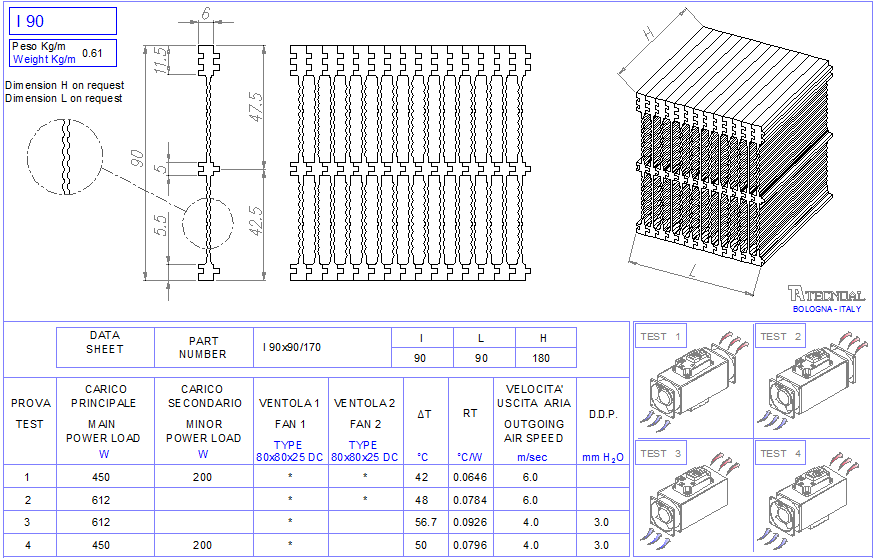

I90

90 mm 61 kg 6 mm 0,100 mm

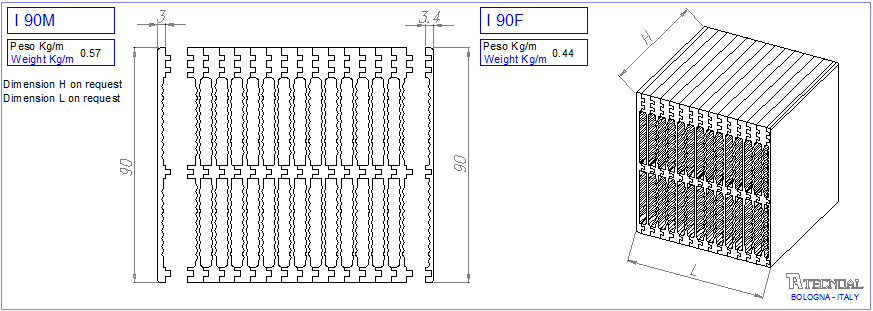

I90M

90 mm 0.57 kg 3 mm 0,100 mm

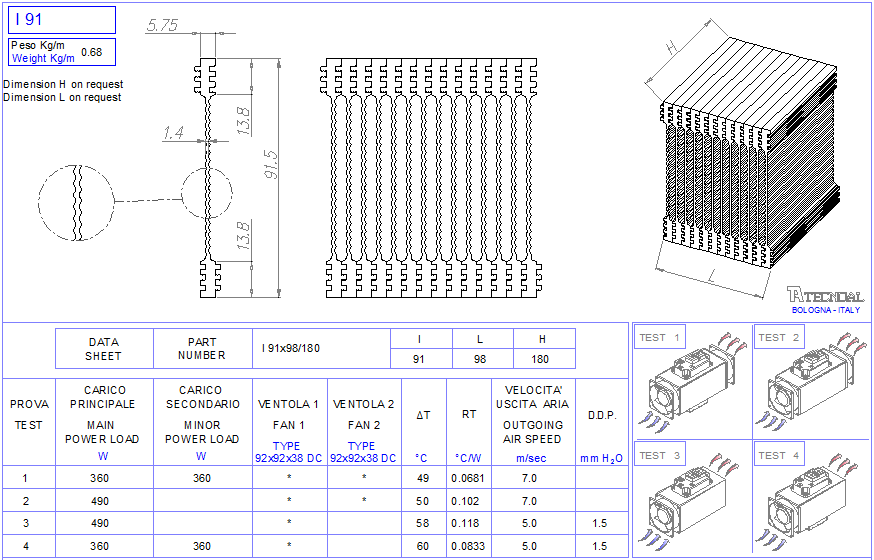

I91

91 mm 0.66 kg 5.75 mm 0,100 mm

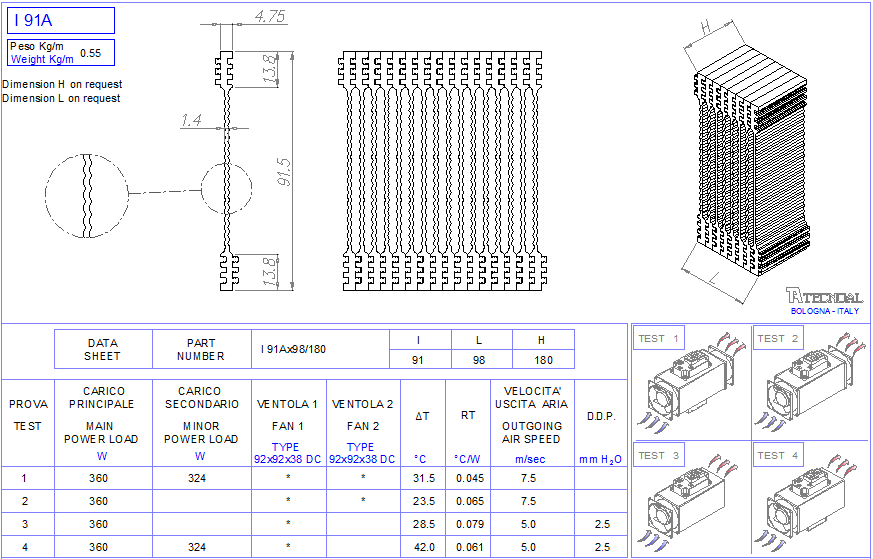

I91A

91 mm 0.56 kg 4.75 mm 0,100 mm

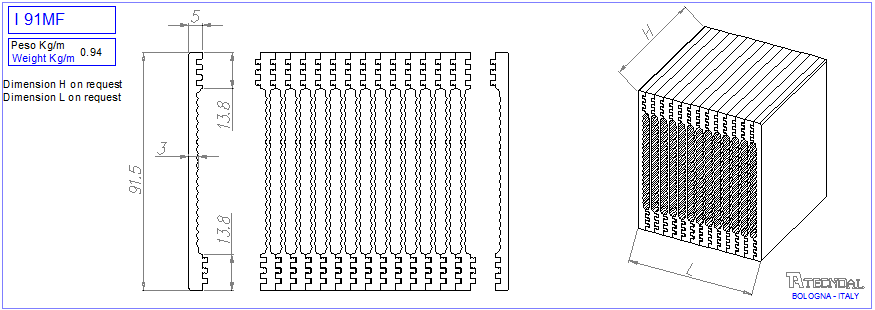

I91MF

91 mm 0.94 kg 5 mm 0,100 mm

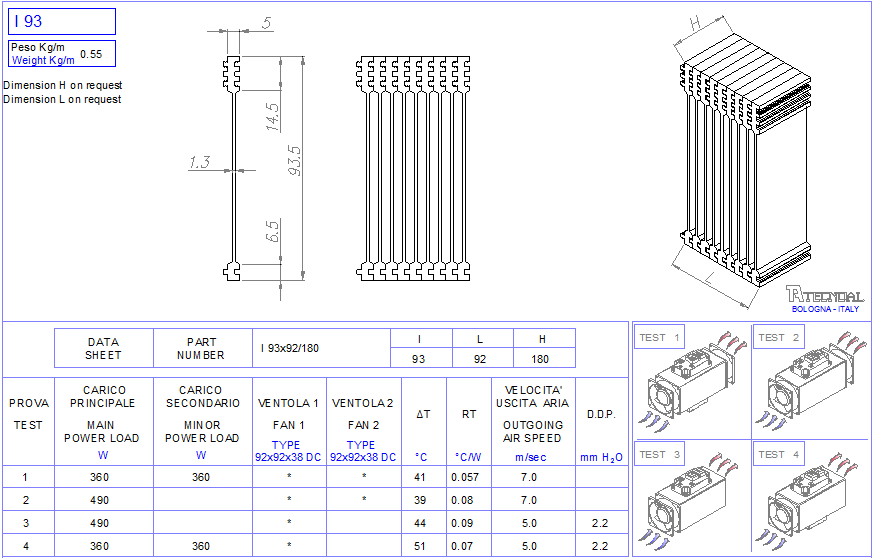

I93

93 mm 0.55 kg 5 mm 0,100 mm

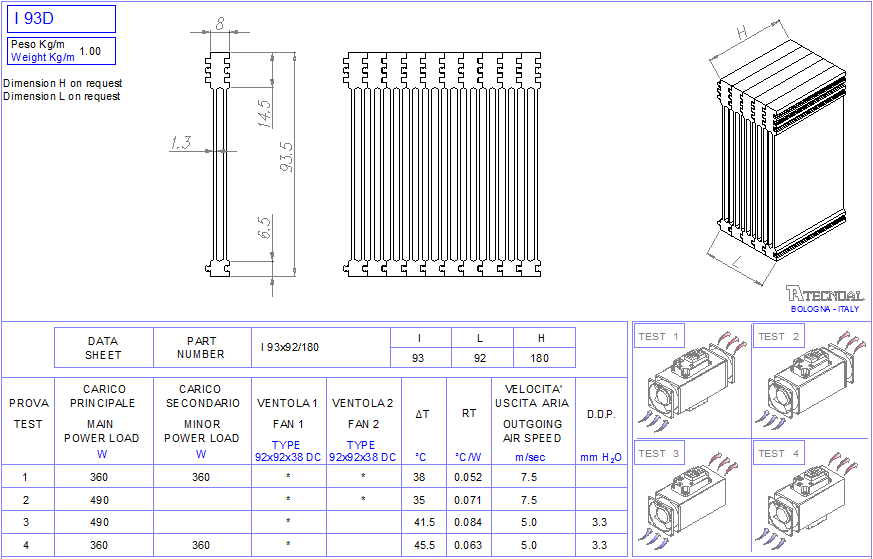

I93D

91 mm 1 kg 8 mm 0,100 mm

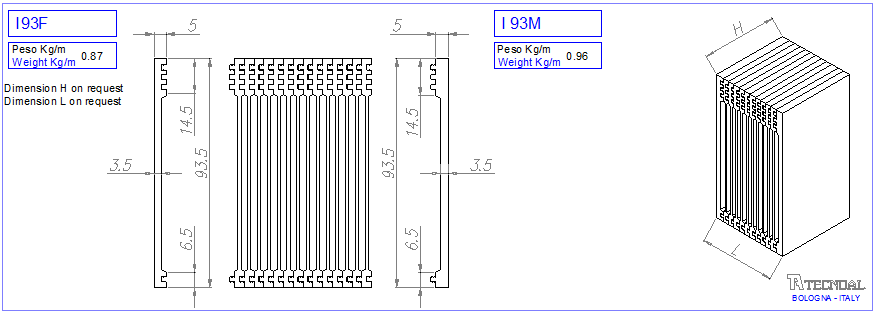

I93M

93 mm 0.9 kg 8 mm 0,100 mm

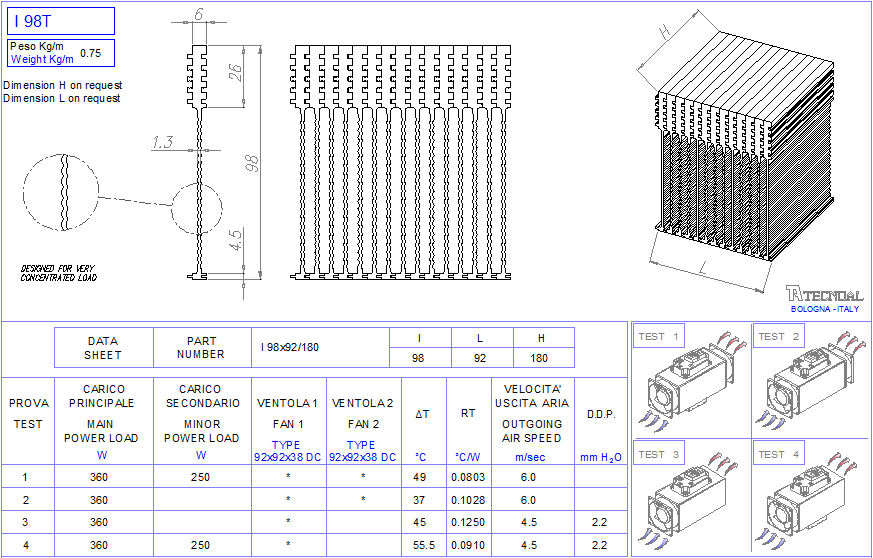

I98T

98 mm 0.75 kg 6 mm 0,100 mm

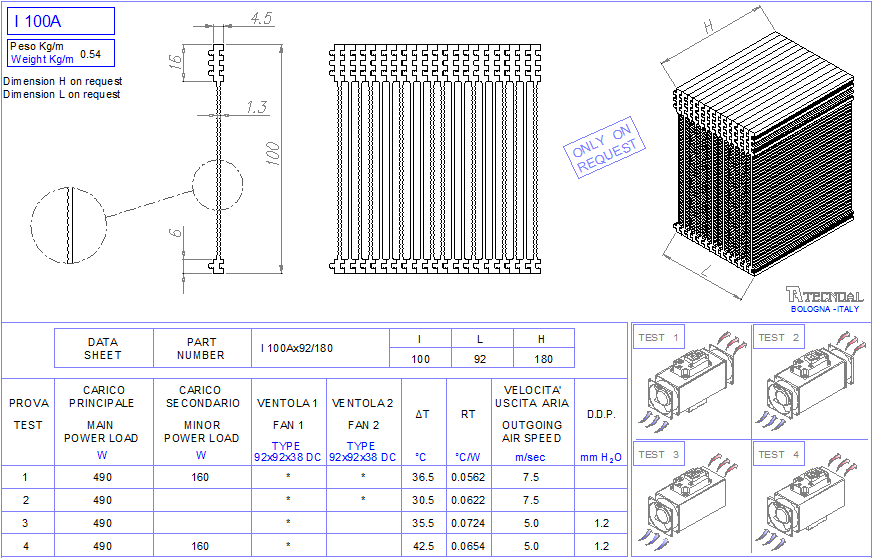

I100A

100 mm 0.54 kg 4.5 mm 0,100 mm

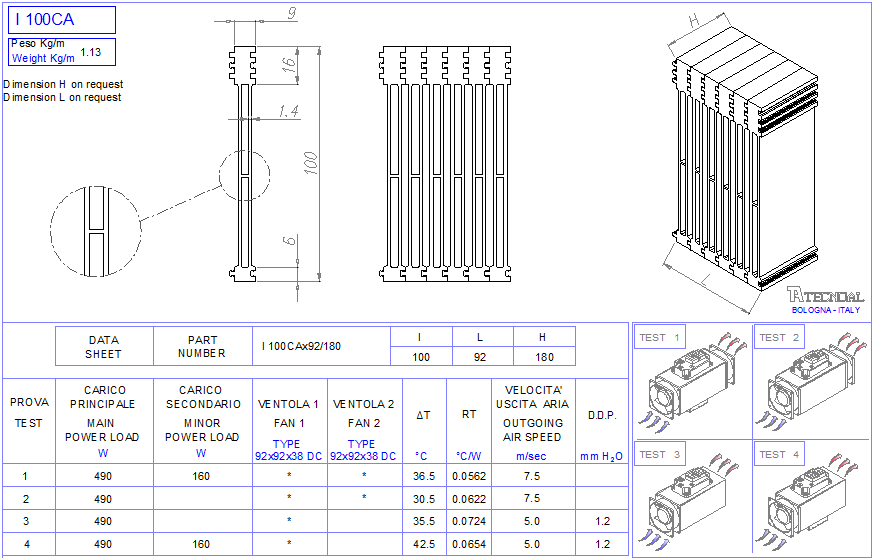

I100CA

100 mm 1.13 kg 9 mm 0,100 mm

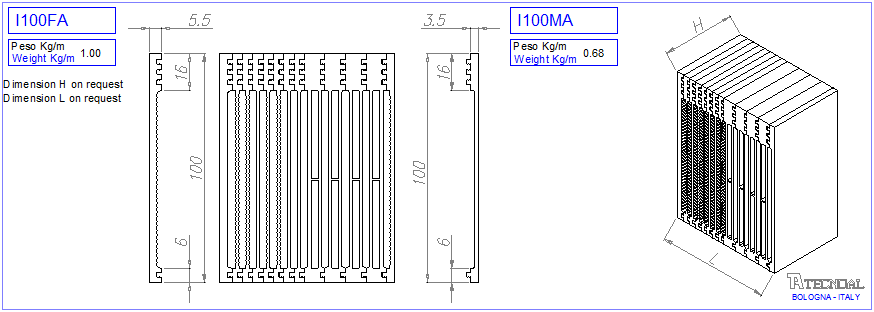

I100MA

100 mm 0.7 kg 3.5 mm 0,100 mm

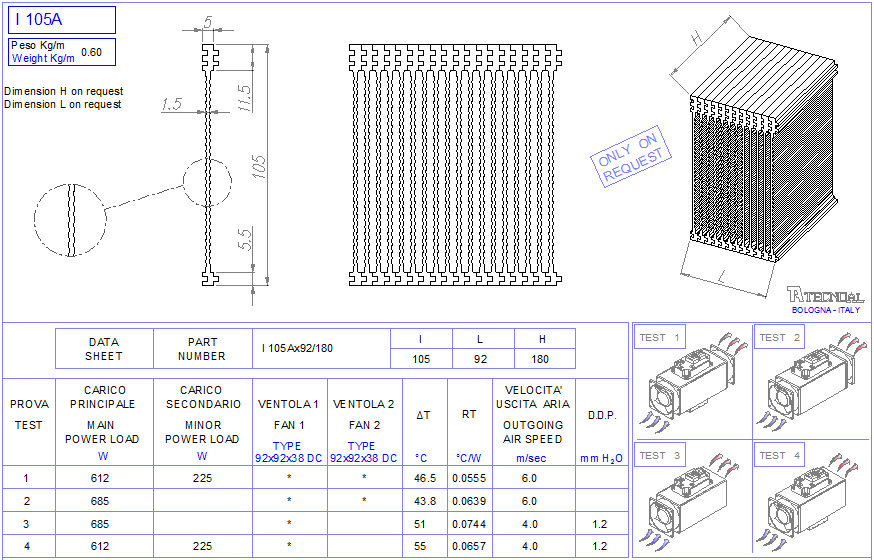

I105A

105 mm 60 kg 5 mm 0,100 mm

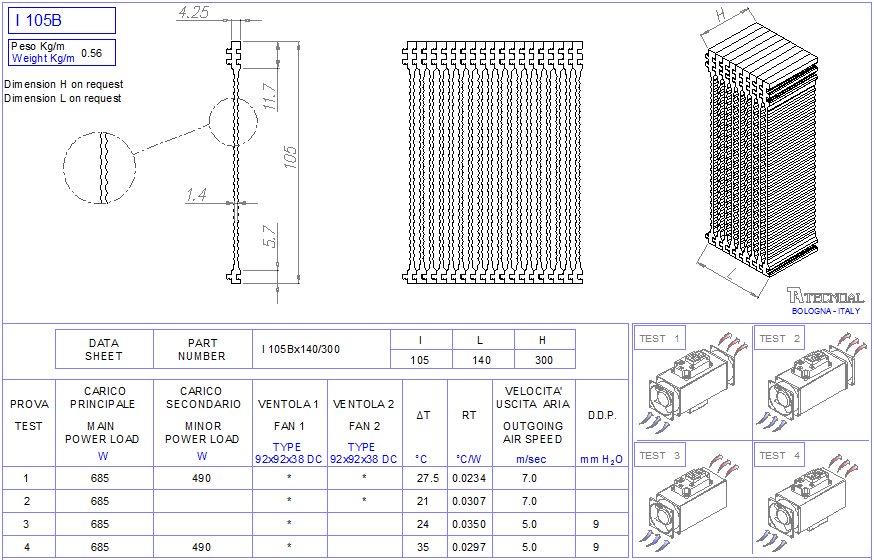

I105B

105 mm 0.56 kg 4.25 mm 0,100 mm

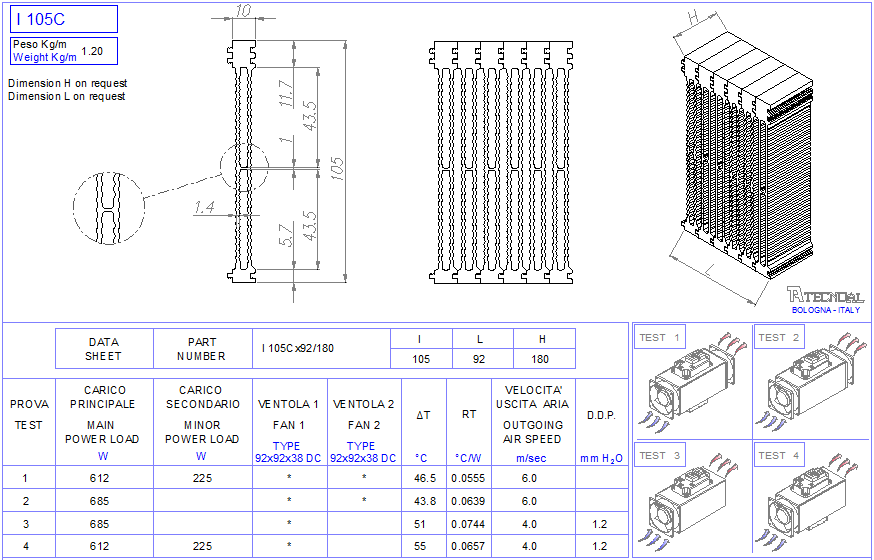

I105C

105 mm 1.2 kg 10 mm 0,100 mm

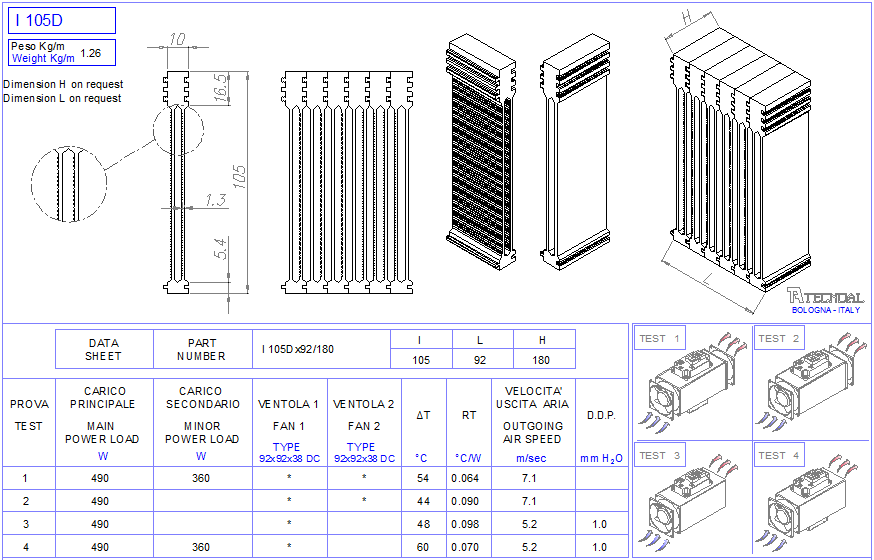

I105D

105 mm 1.26 kg 10 mm 0,100 mm

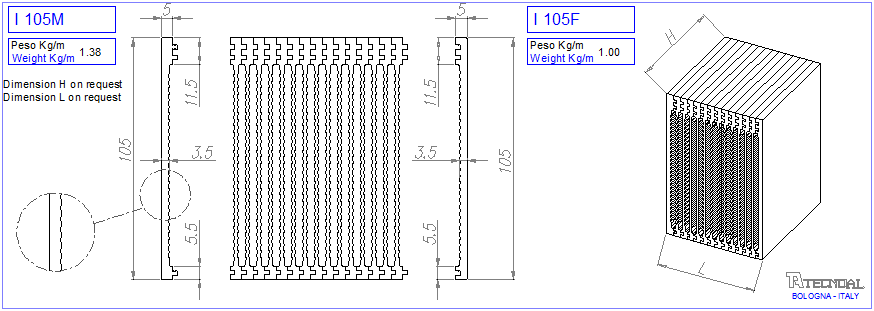

I105M

105 mm 1.3 kg 5 mm 0,100 mm

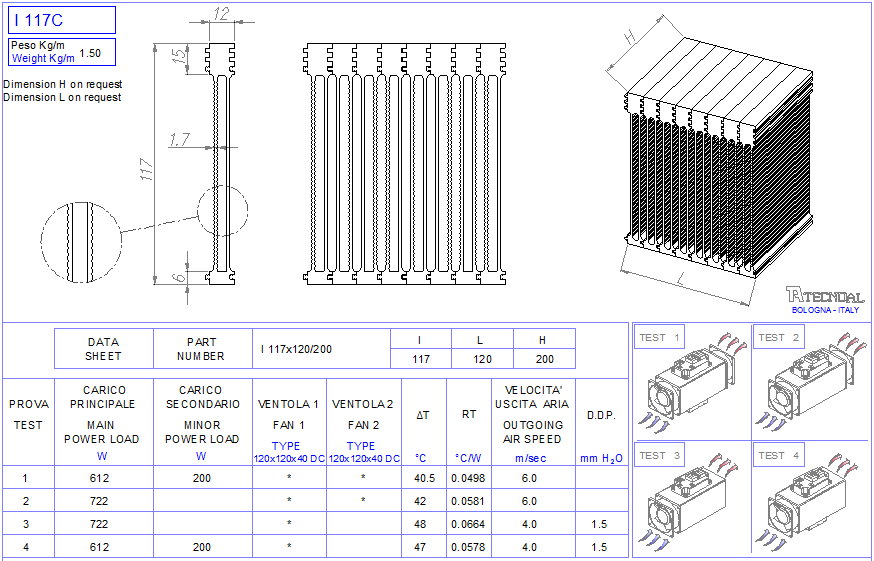

I117C

117 mm 1.5 kg 12 mm 0,100 mm

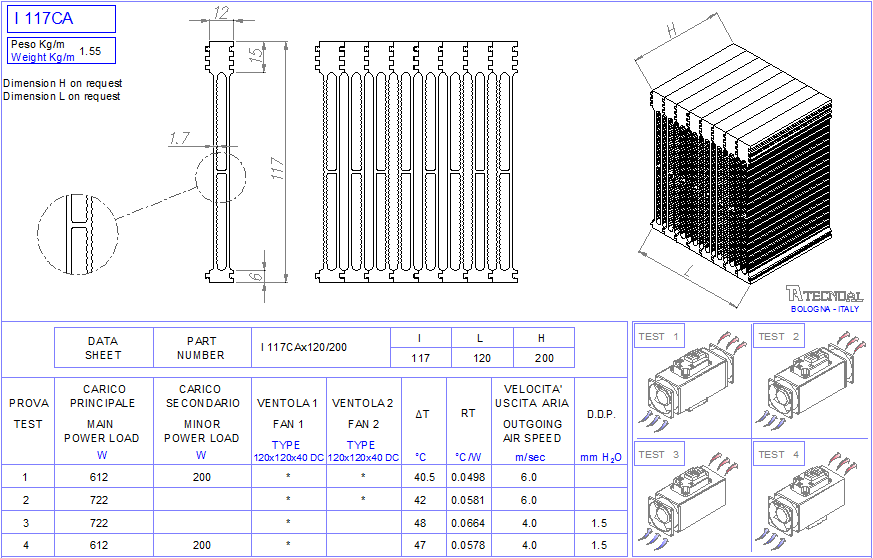

I117CA

117 mm 1.55 kg 12 mm 0,100 mm

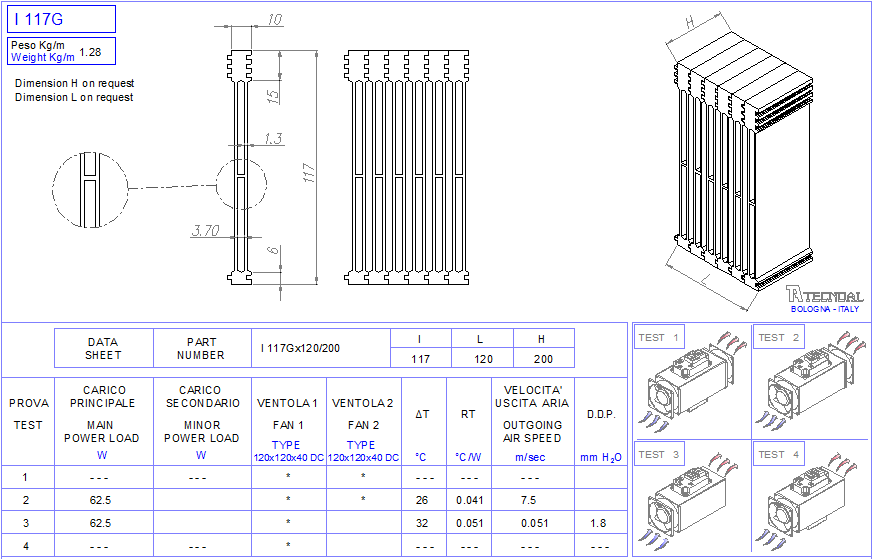

I117G

117 mm 1.26 kg 10 mm 0,100 mm

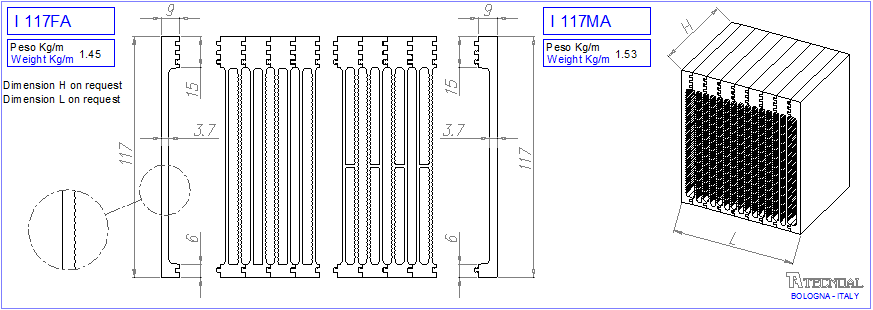

I117MA

117 mm 1.5 kg 9 mm 0,100 mm

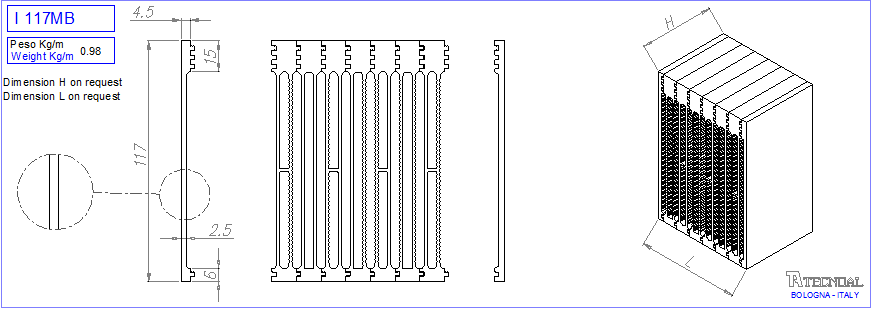

I117MB

117 mm 1 kg 4.5 mm 0,100 mm

I125

125 mm 1.75 kg 10 mm 0,100 mm

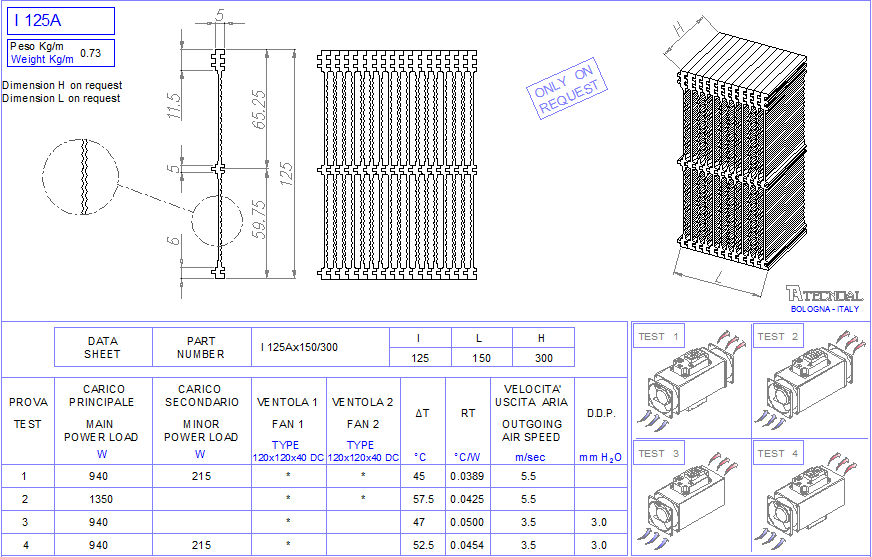

I125A

125 mm 0.75 kg 5 mm 0,100 mm

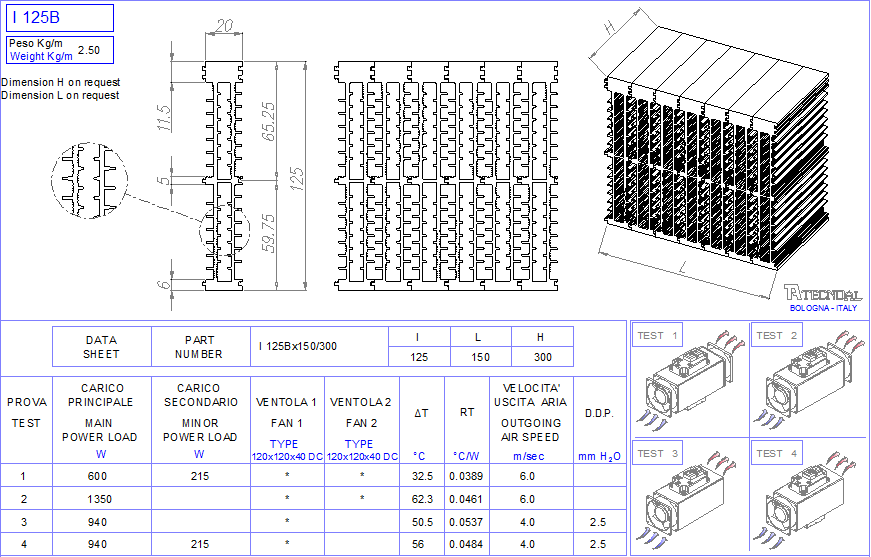

I125B

125 mm 2.5 kg 20 mm 0,100 mm

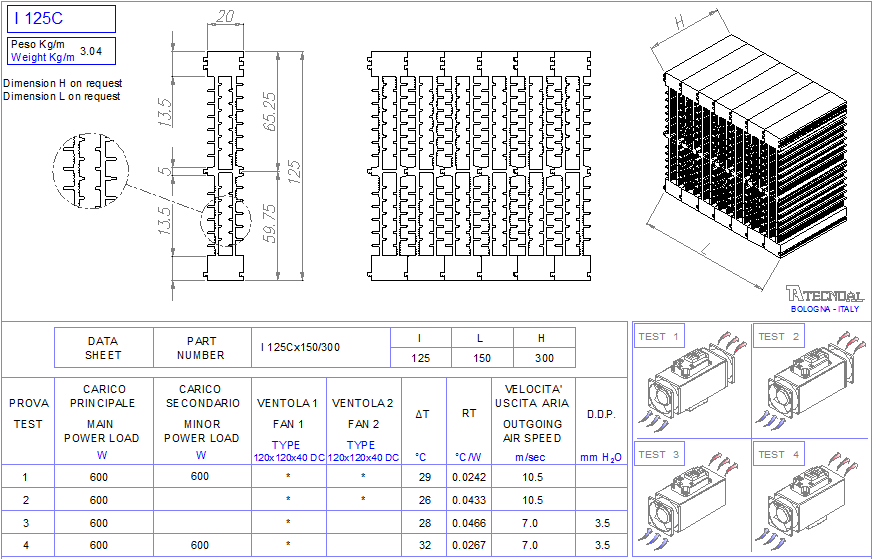

I125C

125 mm 3.04 kg 20 mm 0,100 mm

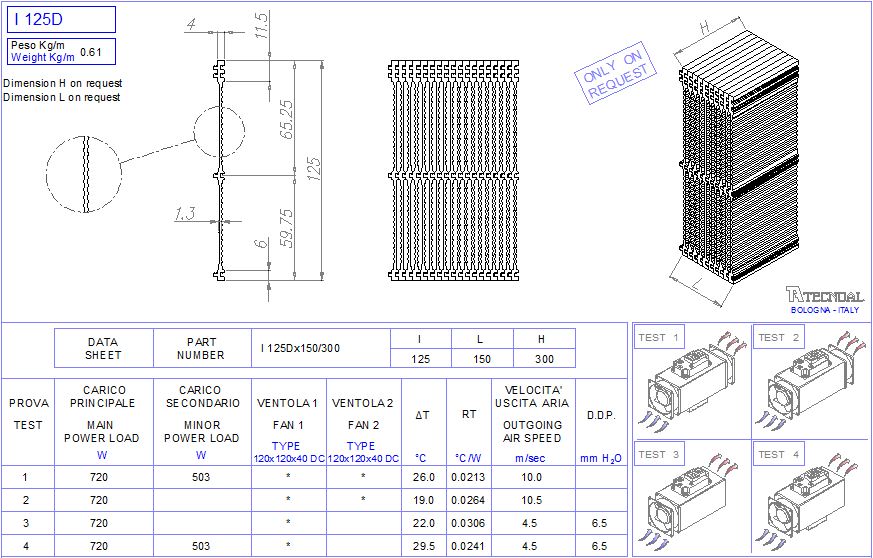

I125D

125 mm 0.6 kg 4 mm 0,100 mm

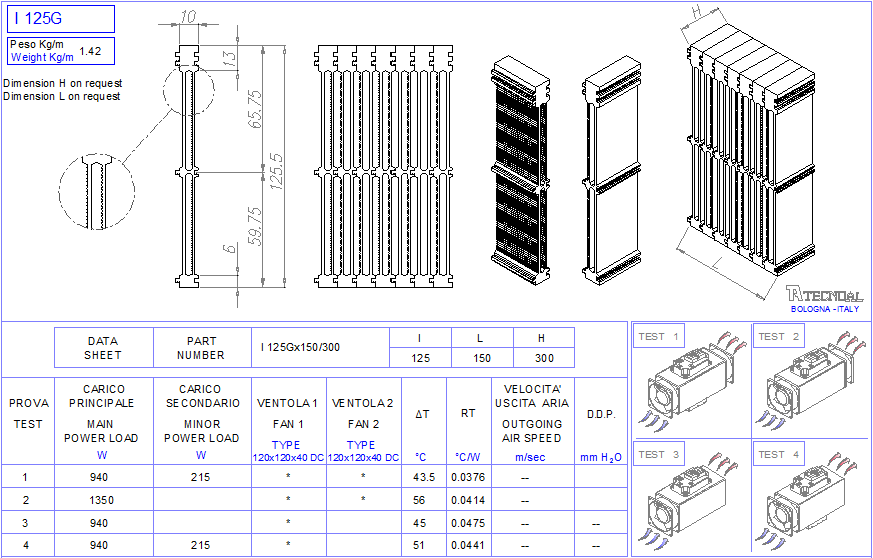

I125G

125 mm 1.42 kg 10 mm 0,100 mm

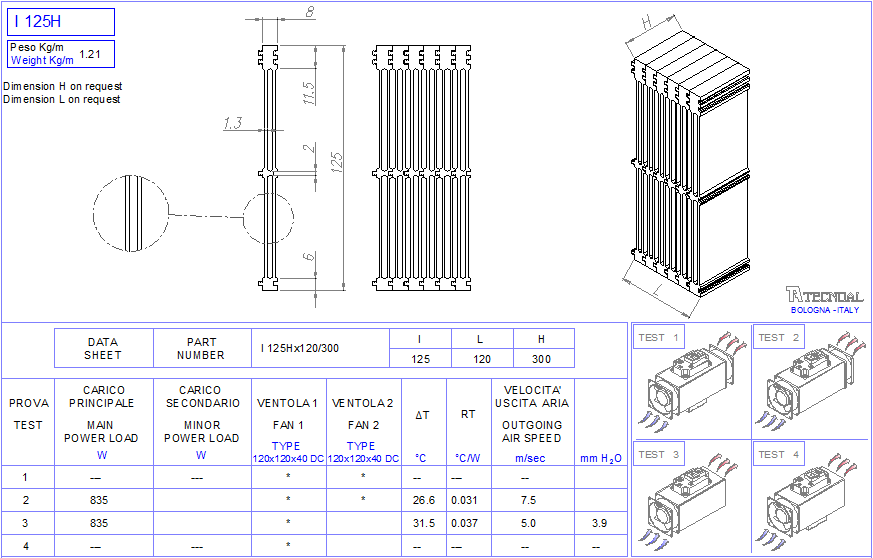

I125H

125 mm 1.21 kg 8 mm 0,100 mm

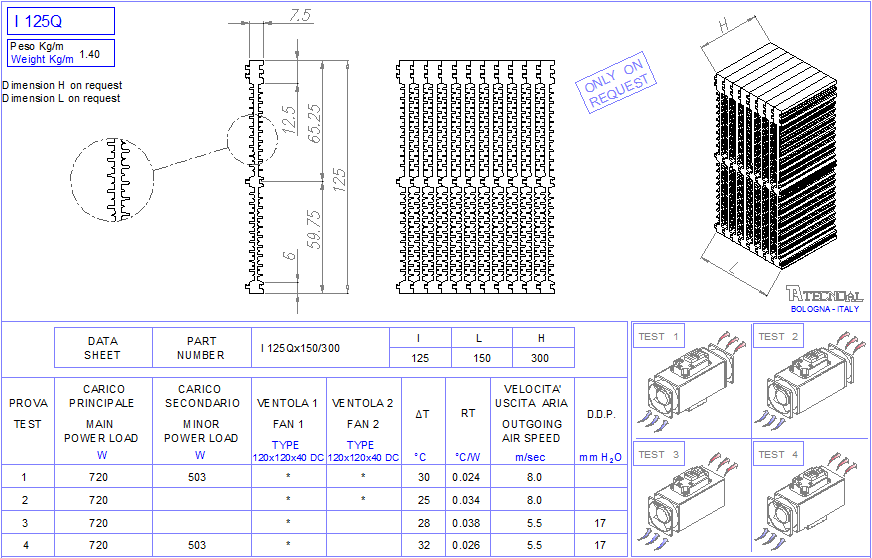

I125Q

125 mm 1.4 kg 7.5 mm 0,100 mm

I125M

125 mm 2 kg 20 mm 0,100 mm

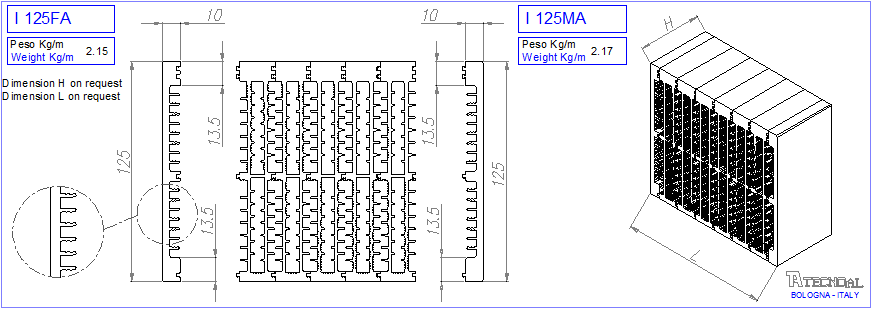

I125MA

125 mm 2.15 kg 10 mm 0,100 mm

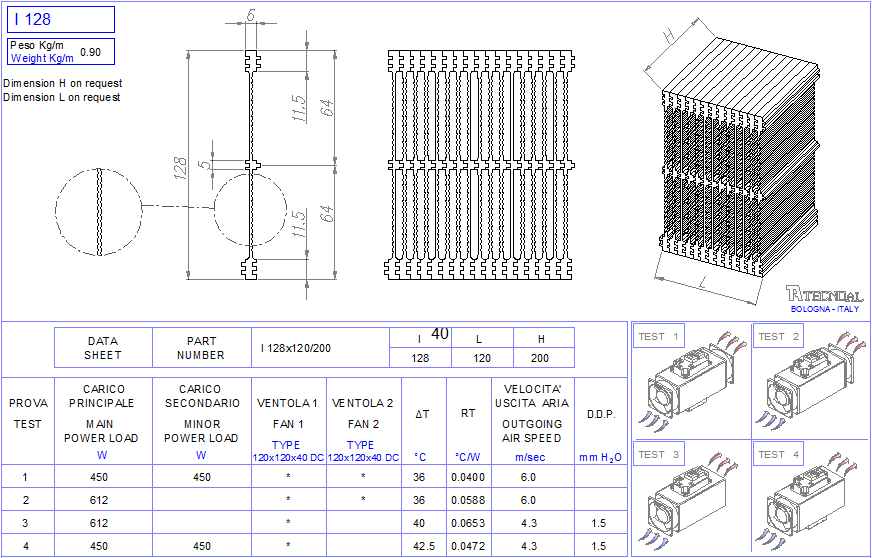

I128

128 mm 0.9 kg 6 mm 0,100 mm

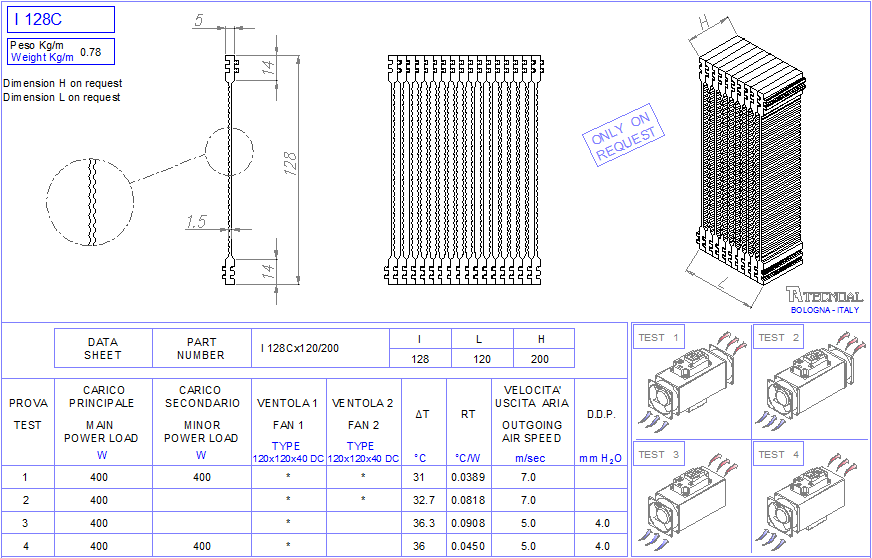

I128C

128 mm 0.78 kg 5 mm 0,100 mm

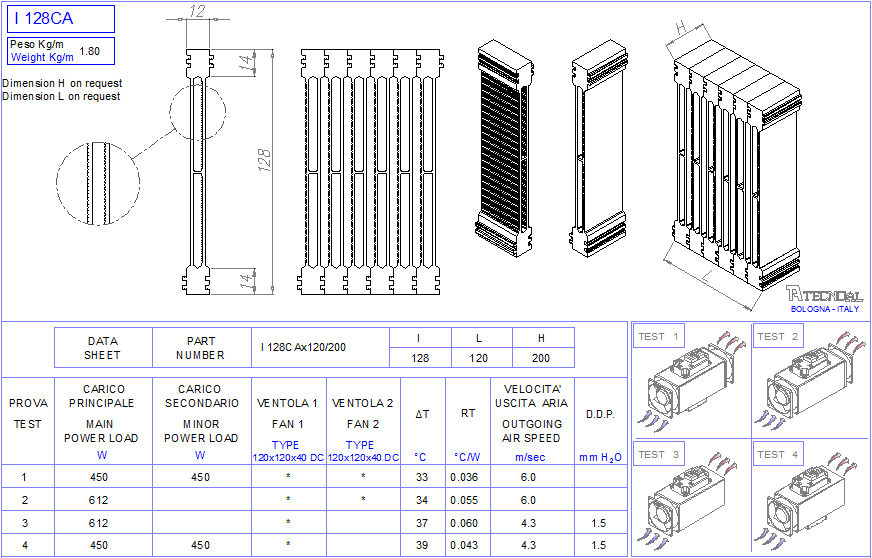

I128CA

125 mm 1.8 kg 12 mm 0,100 mm

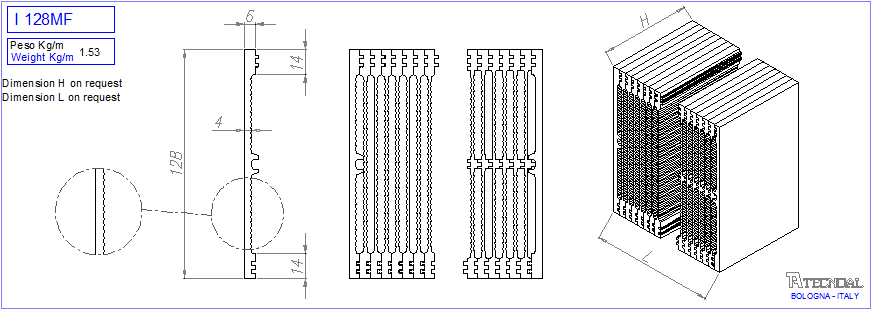

I128MF

128 mm 1.53 kg 5 mm 0,100 mm

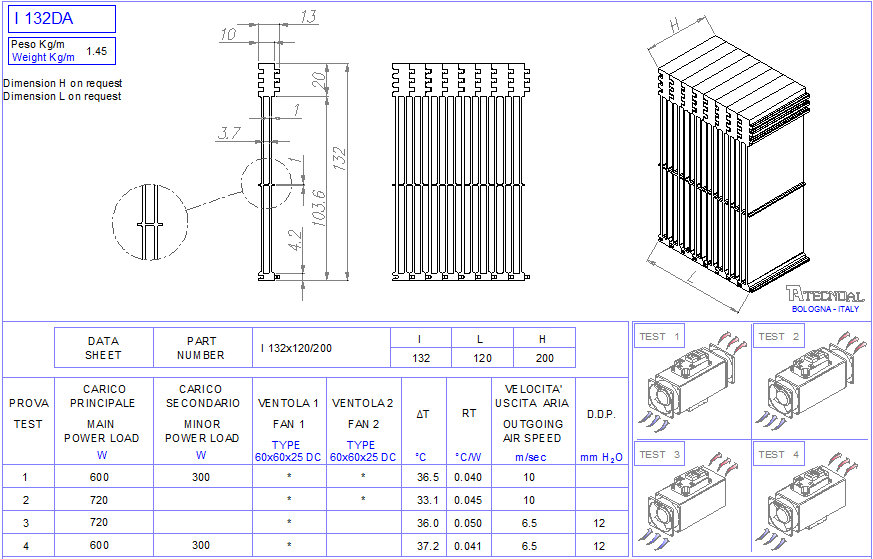

I132DA

132 mm 1.45 kg 10 mm 0,100 mm

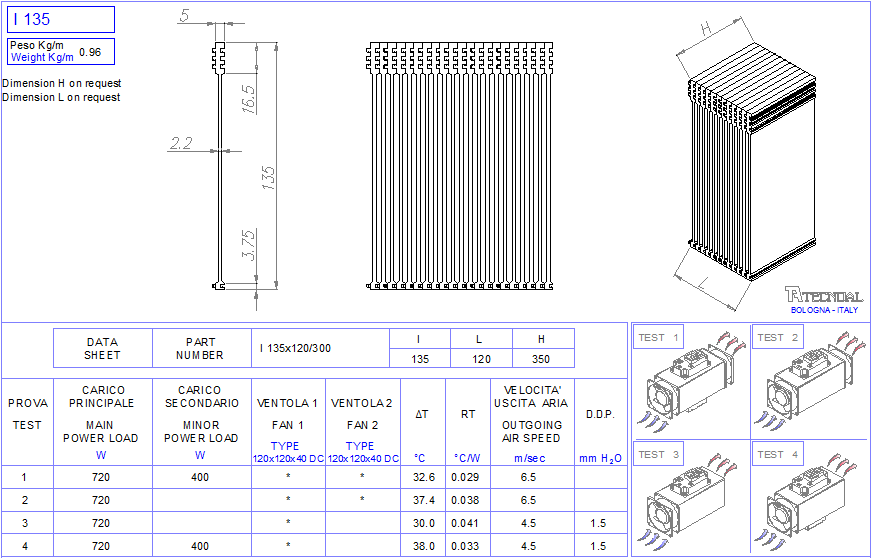

I135

135 mm 0.96 kg 5 mm 0,100 mm

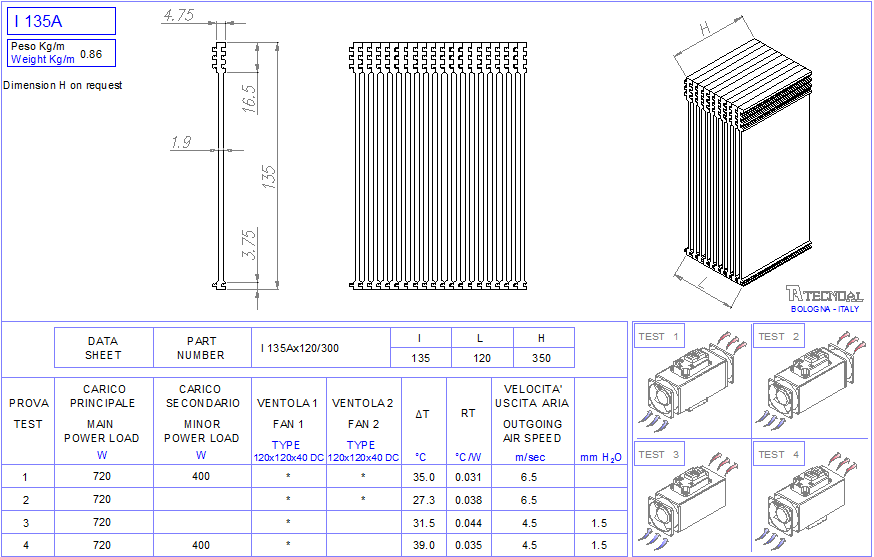

I135A

135 mm 86 kg 4.75 mm 0,100 mm

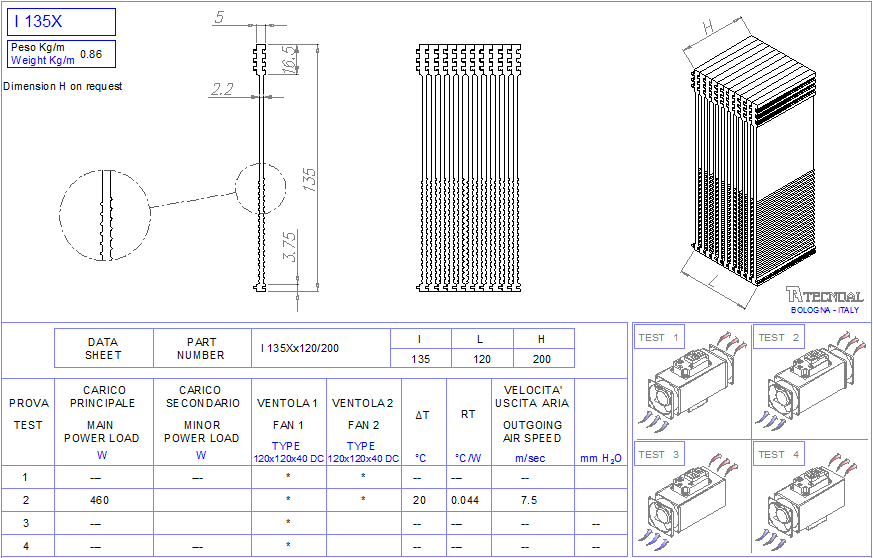

I135X

135 mm 0.86 kg 5 mm 0,100 mm

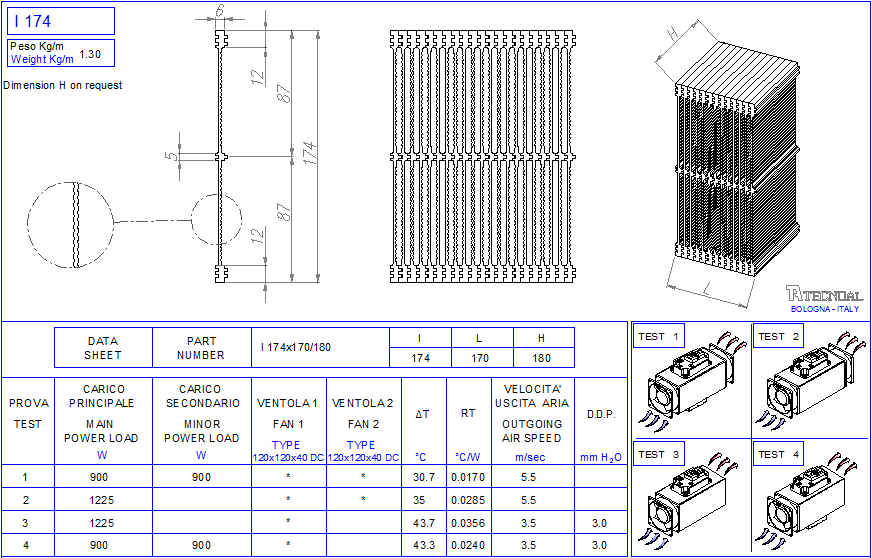

I174

174 mm 1.3 kg 6 mm 0,100 mm

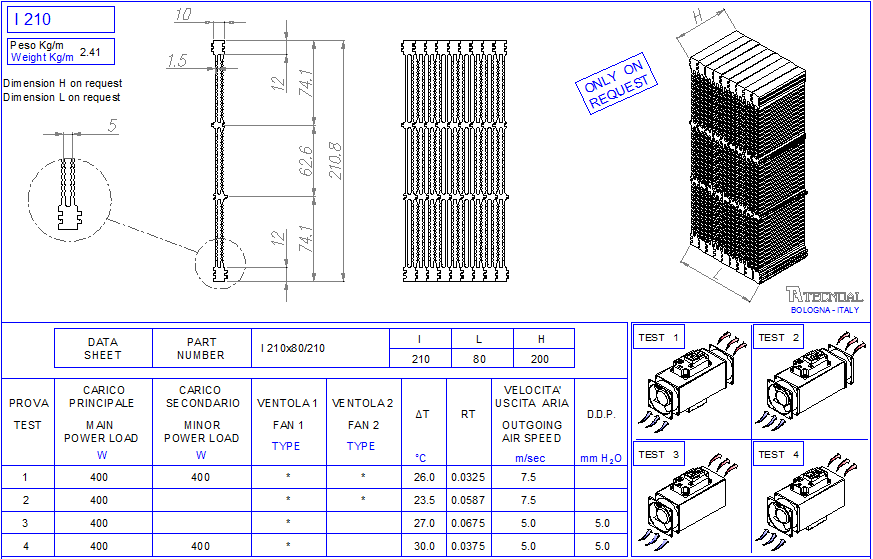

I210

210 mm 2.4 kg 10 mm 0,100 mm

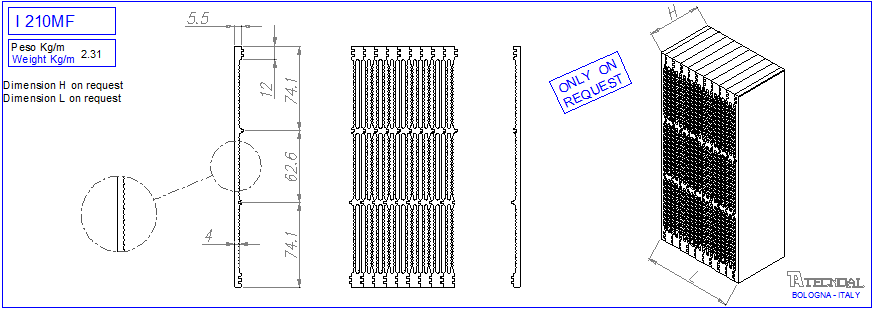

I210MF

210 mm 2.3 kg 5.5 mm 0,100 mm

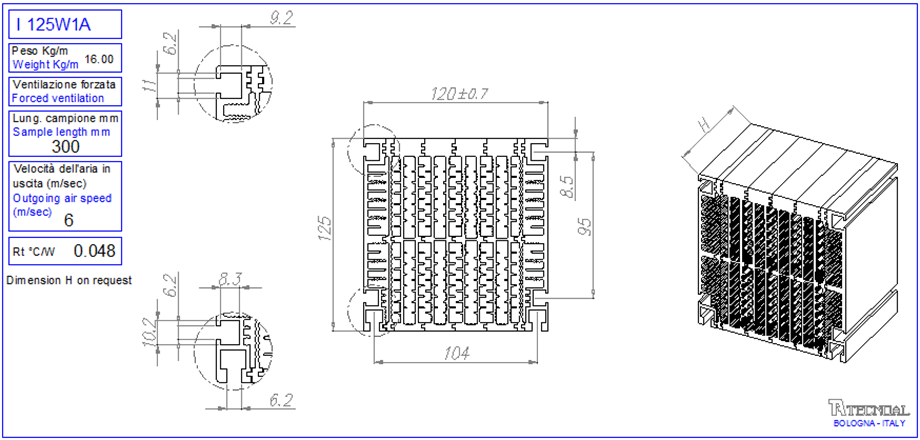

I125W1A

125 mm 16 kg 120 mm 0,100 mm

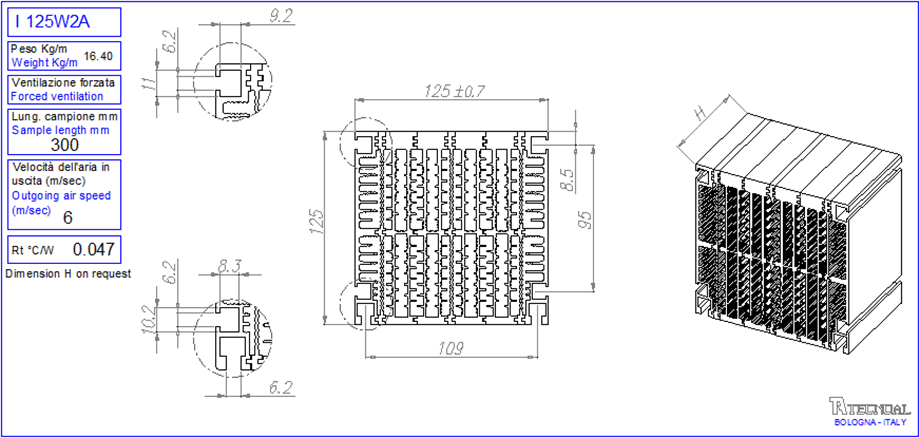

I125W2A

125 mm 16.4 kg 125 mm 0,100 mm

I125W3A

125 mm 16.7 kg 130 mm 0,100 mm

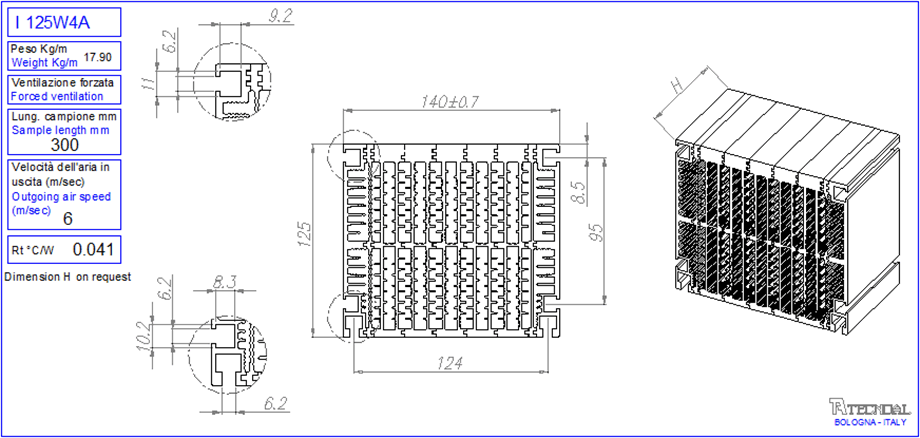

I125W4A

125 mm 17.9 kg 140 mm 0,100 mm

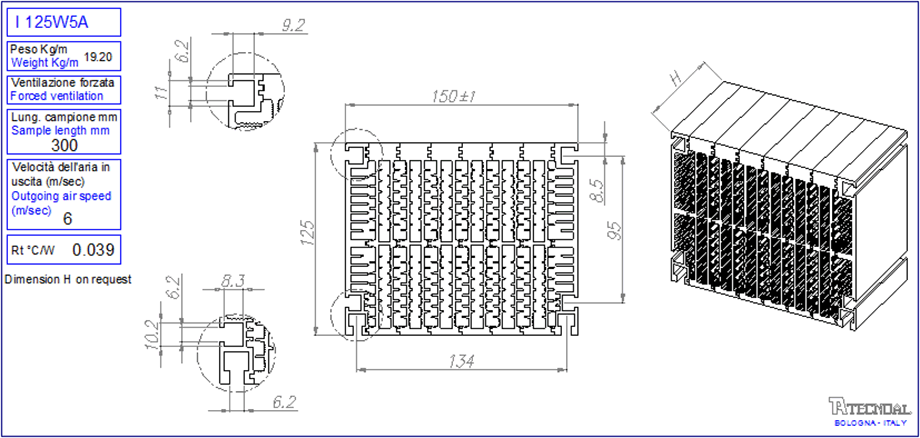

I125W5A

125 mm 19.2 kg 150 mm 0,100 mm

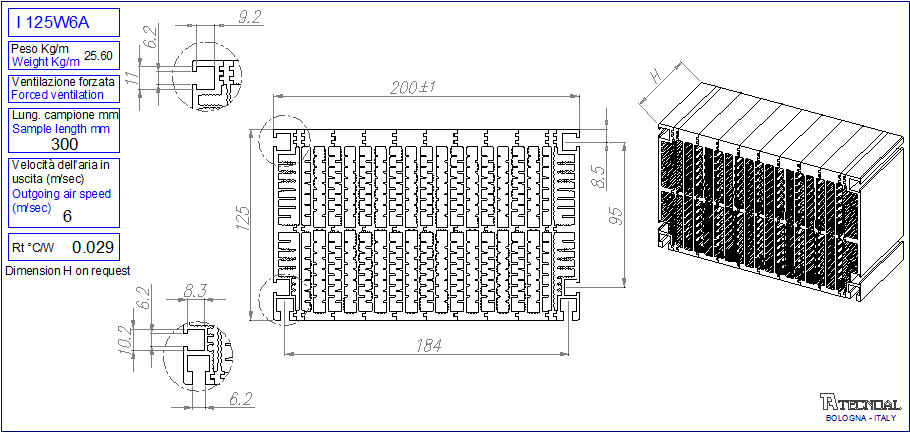

I125W6A

125 mm 25.6 kg 200 mm 0,100 mm

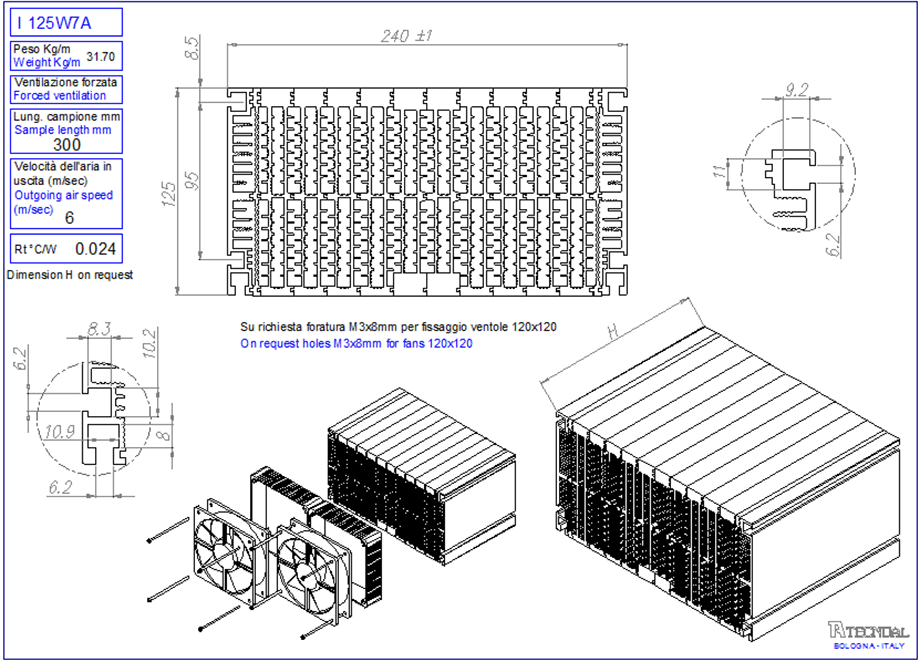

I125W7A

125 mm 31.7 kg 240 mm 0,100 mm

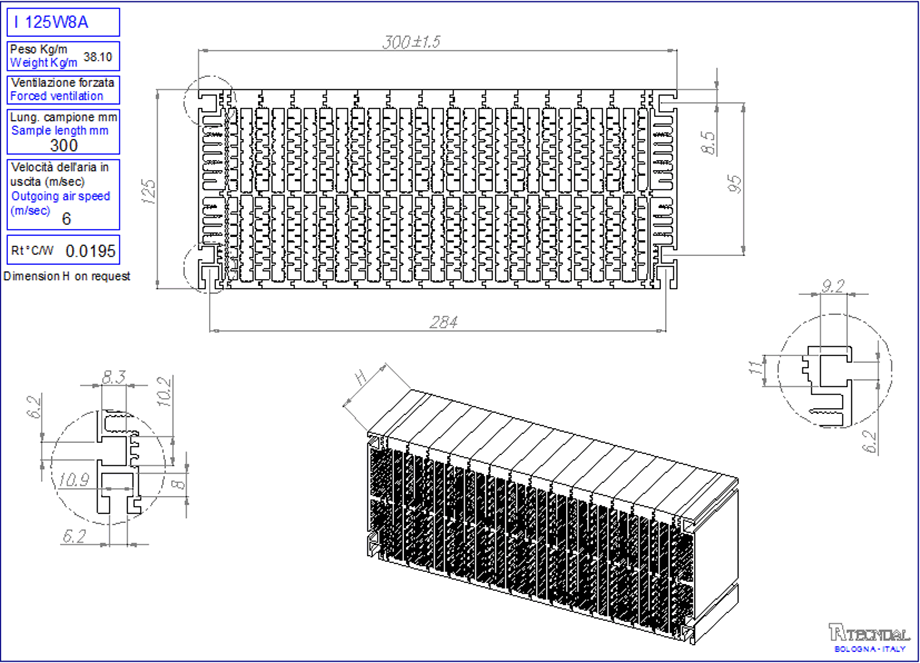

I125W8A

125 mm 38.1 kg 300 mm 0,100 mm

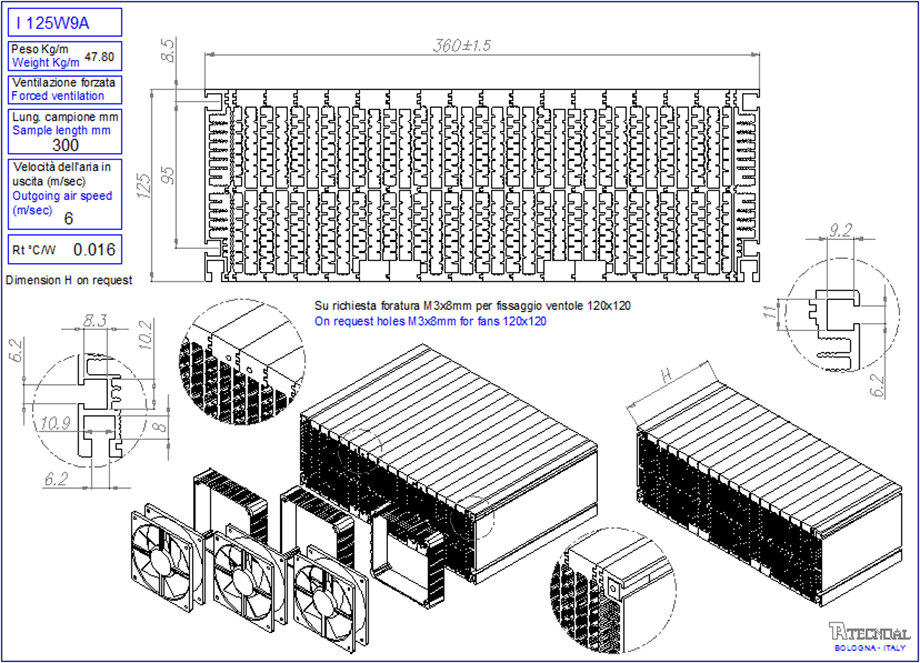

I125W9A

125 mm 47.8 kg 360 mm 0,100 mm

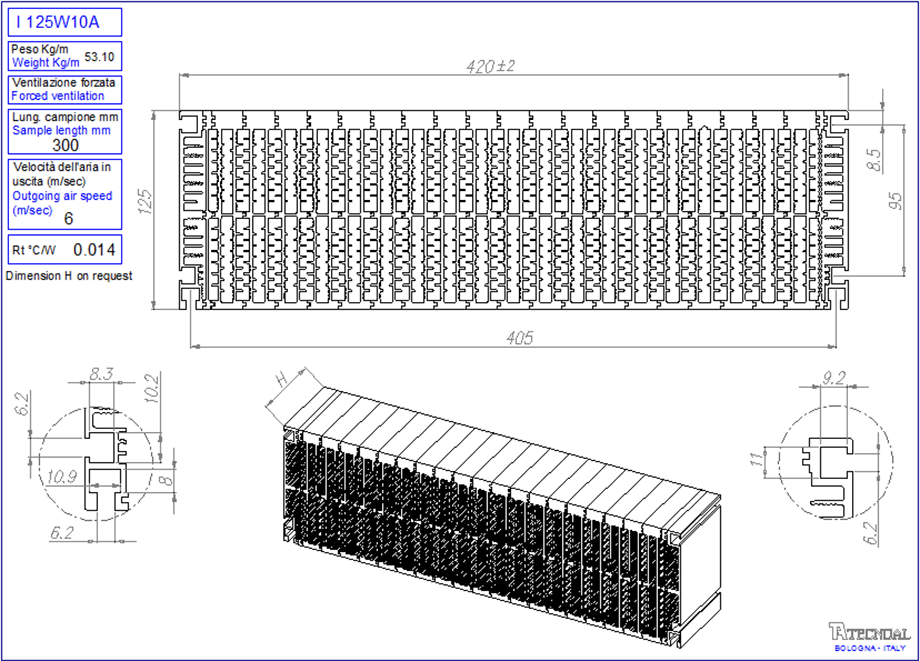

I125W10A

125 mm 53.1 kg 420 mm 0,100 mm

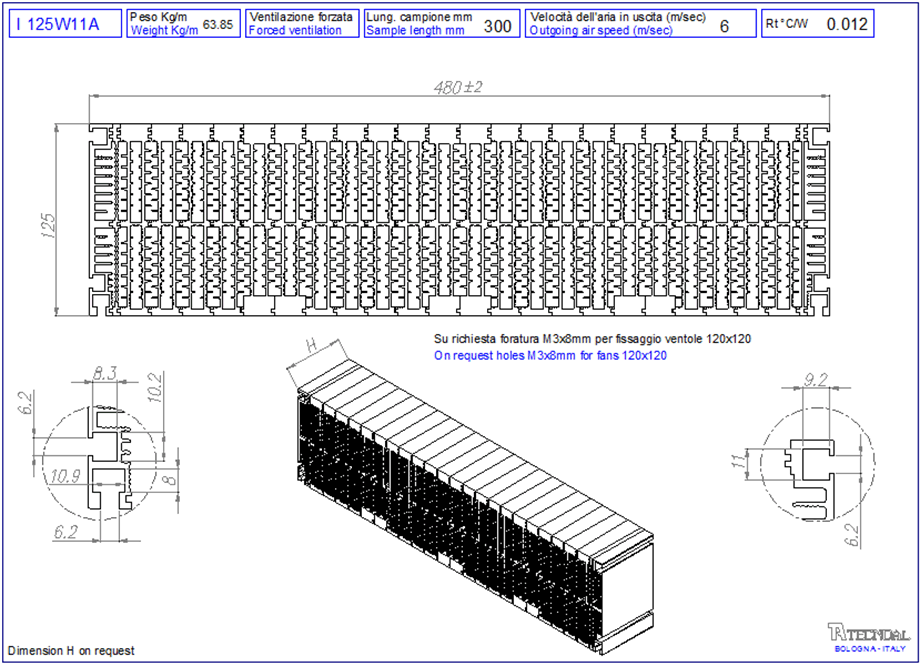

i125W11A

125 mm 63.85 kg 480 mm 0,100 mm

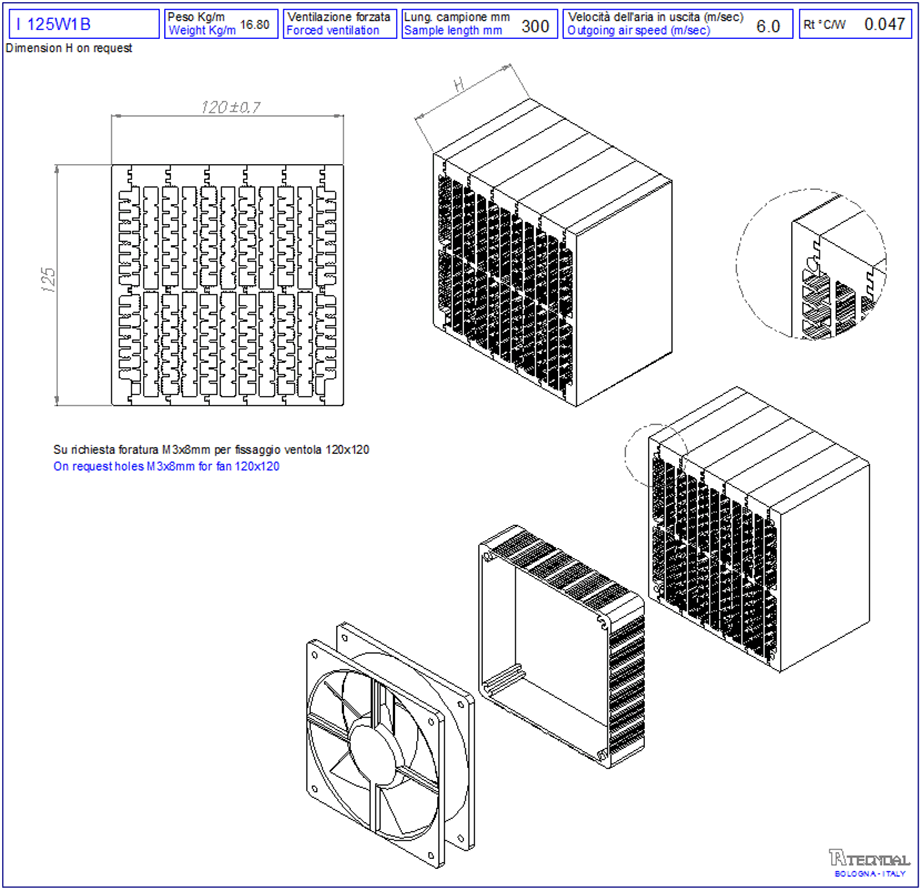

I125W1B

125 mm 16.8 kg 120 mm 0,100 mm

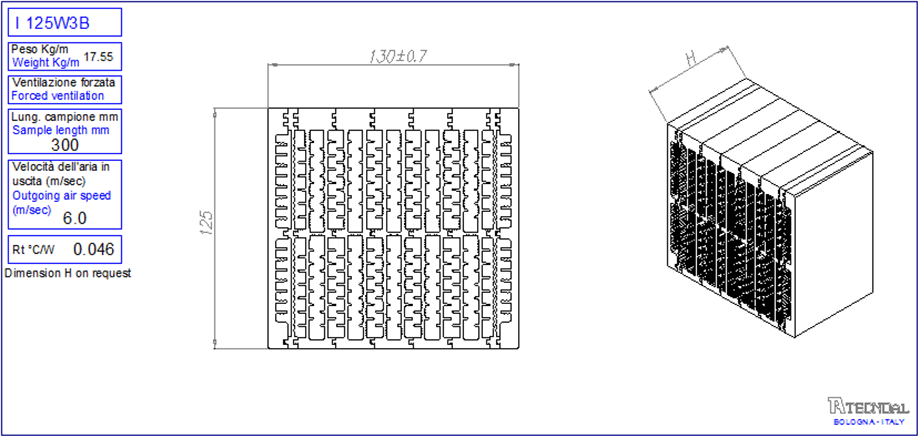

I125W3B

125 mm 17.55 kg 130 mm 0,100 mm

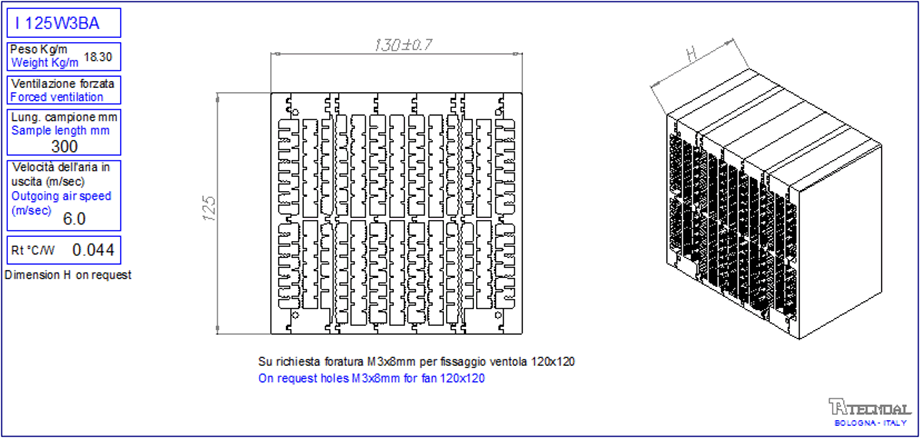

i125W3BA

125 mm 18.3 kg 130 mm 0,100 mm

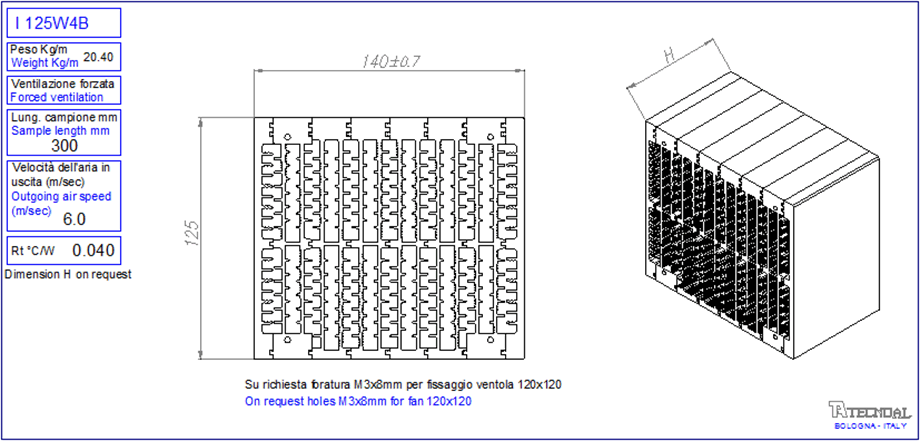

125W4B

125 mm 20.4 kg 140 mm 0,100 mm

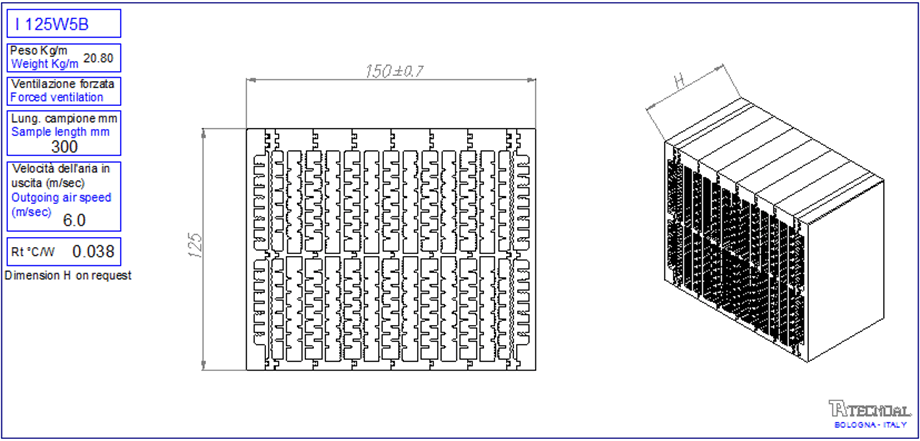

I125W5B

125 mm 20.8 kg 150 mm 0,100 mm

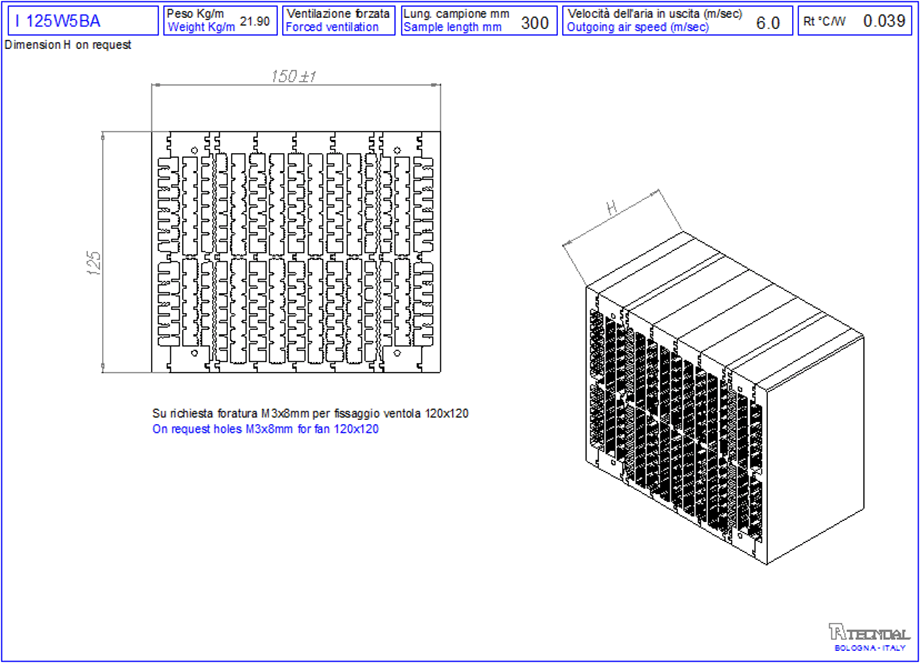

I125W5BA

125 mm 21.9 kg 150 mm 0,100 mm

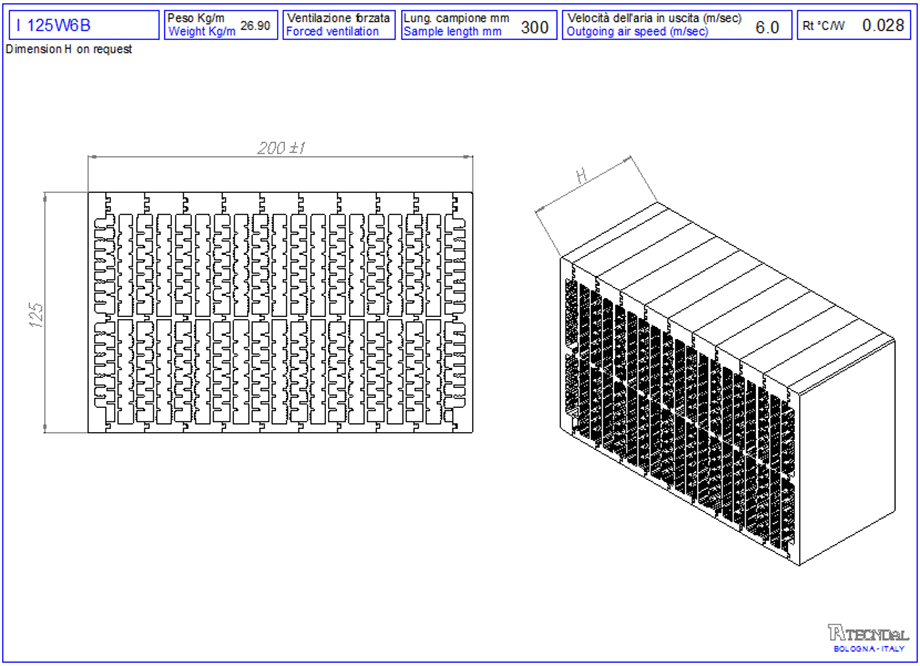

I125W6B

125 mm 26.9 kg 200 mm 0,100 mm

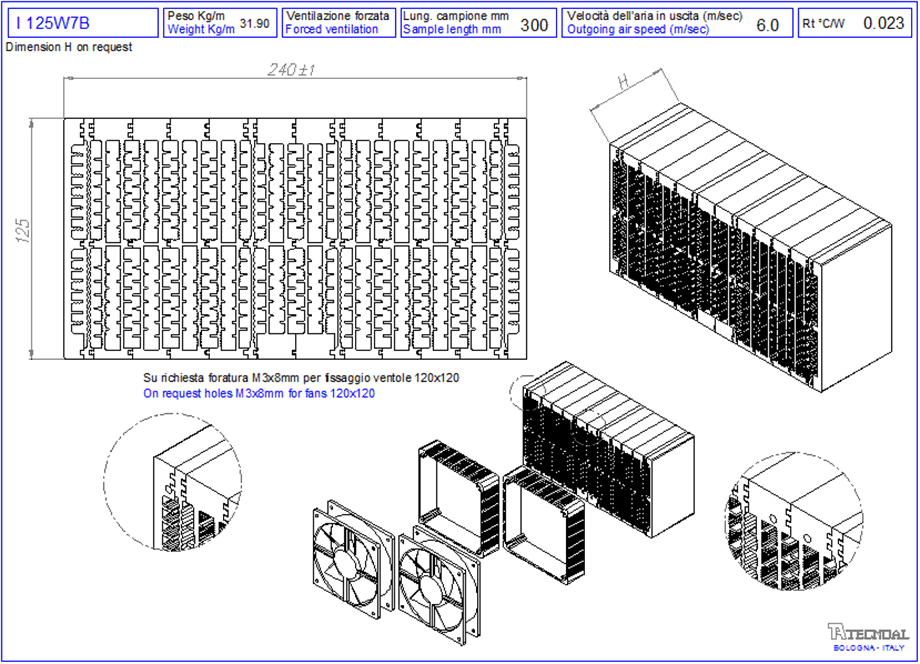

I125W7B

125 mm 31.9 kg 240 mm 0,100 mm

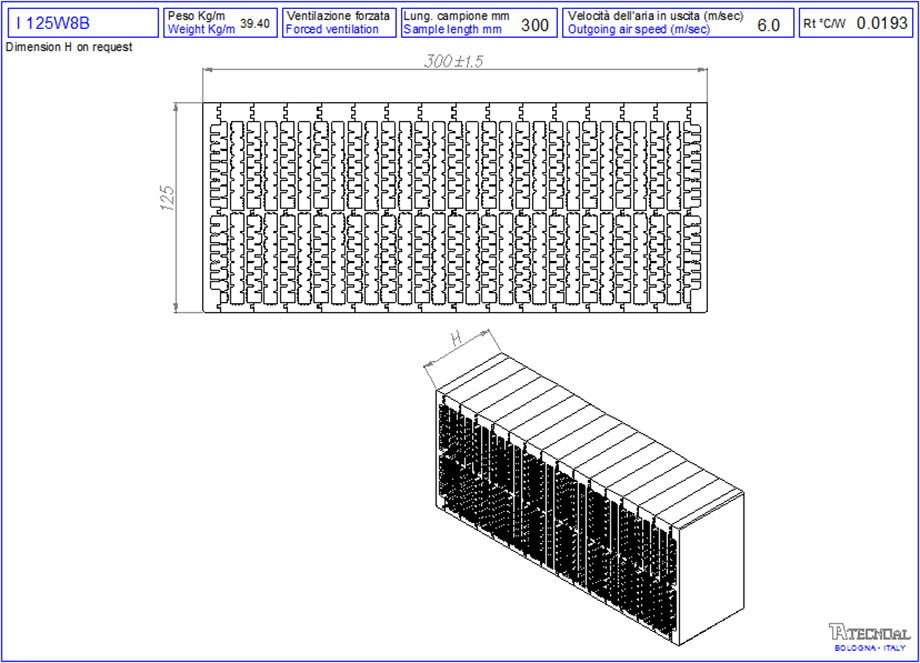

I125W8B

125 mm 39.4 kg 300 mm 0,100 mm

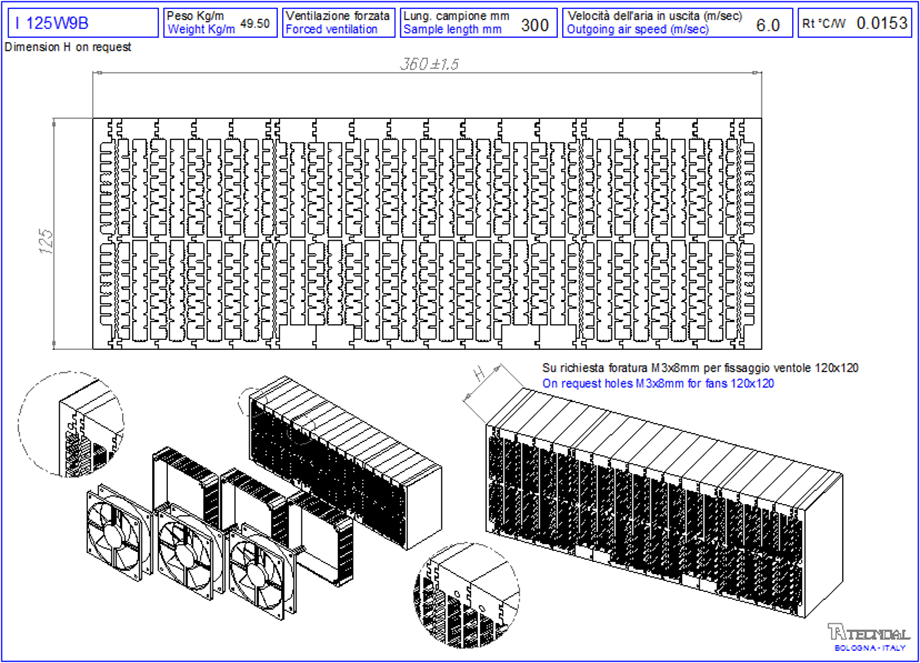

I125W9B

125 mm 49.5 kg 360 mm 0,100 mm

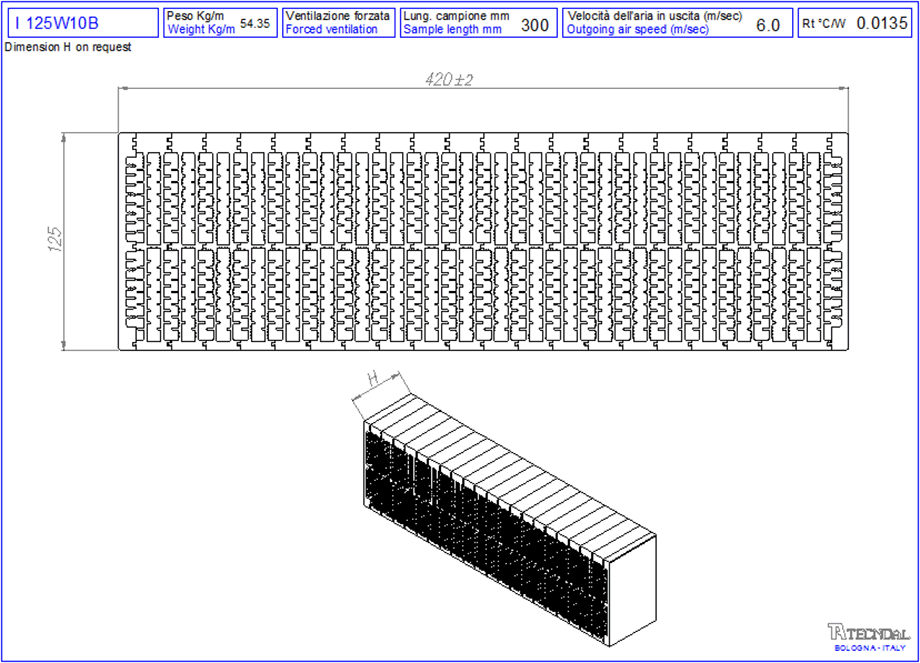

I125W10B

125 mm 54.35 kg 420 mm 0,100 mm

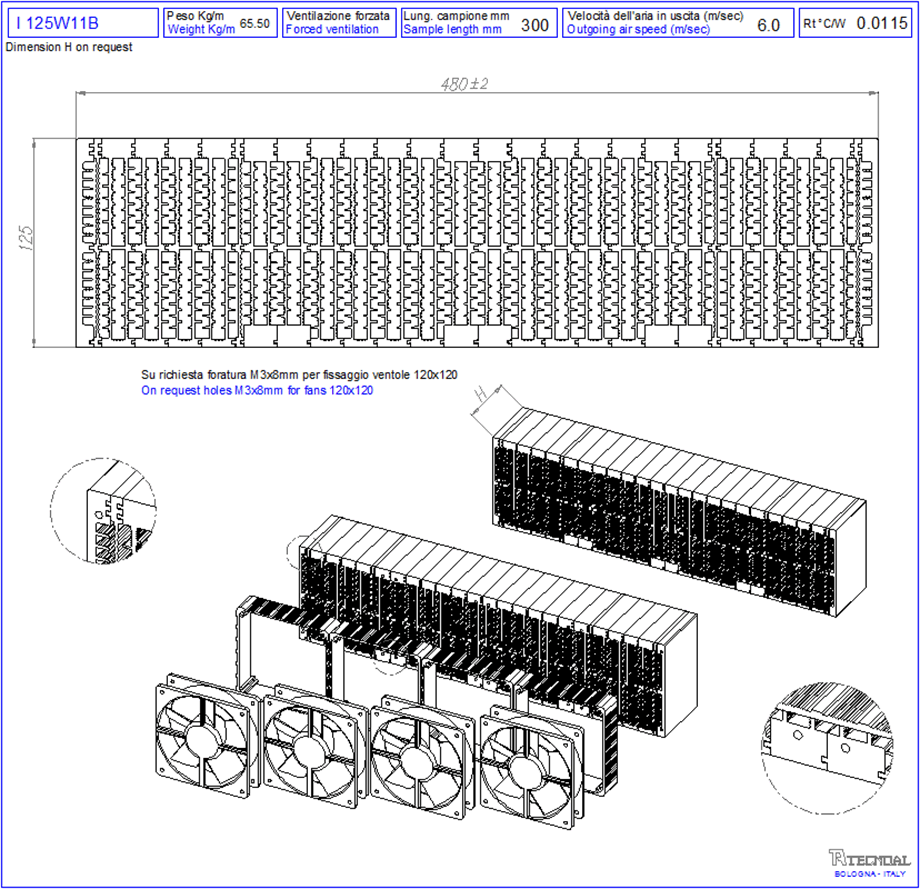

I125W11B

125 mm 65.5 kg 480 mm 0,100 mm

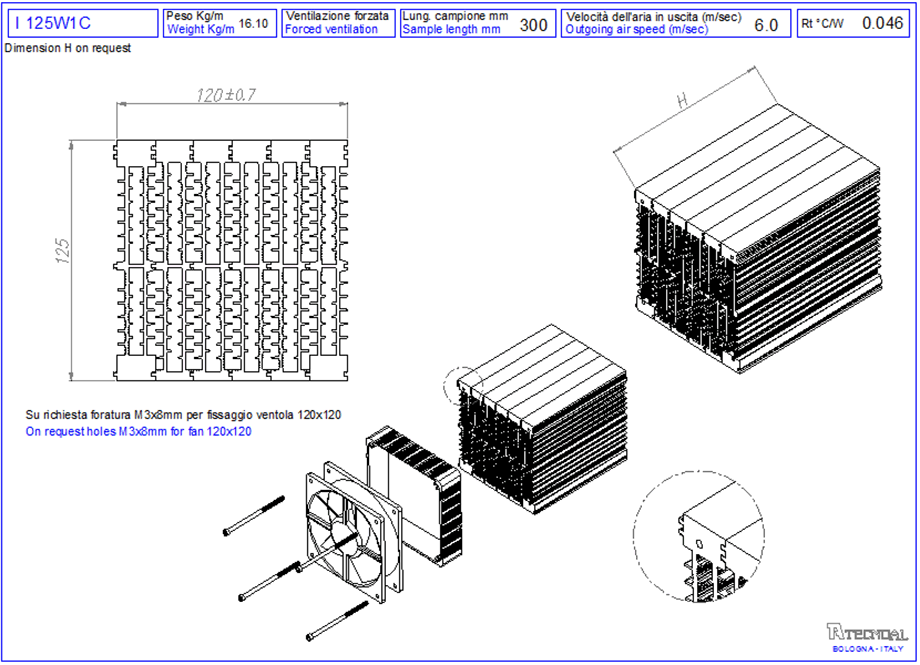

I125W1C

125 mm 16.1 kg 120 mm 0,100 mm

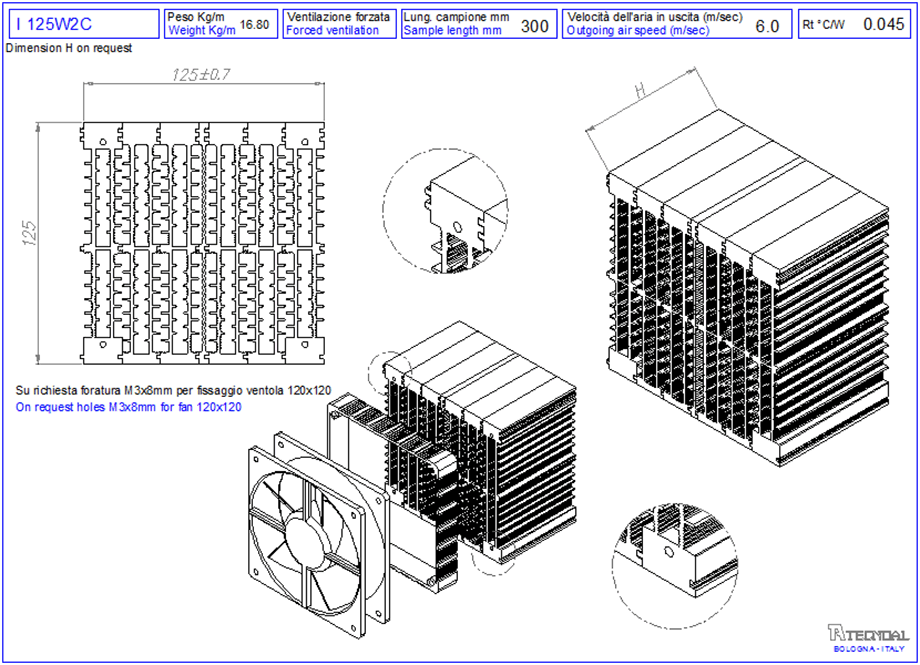

I125W2C

125 mm 16.8 kg 125 mm 0,100 mm

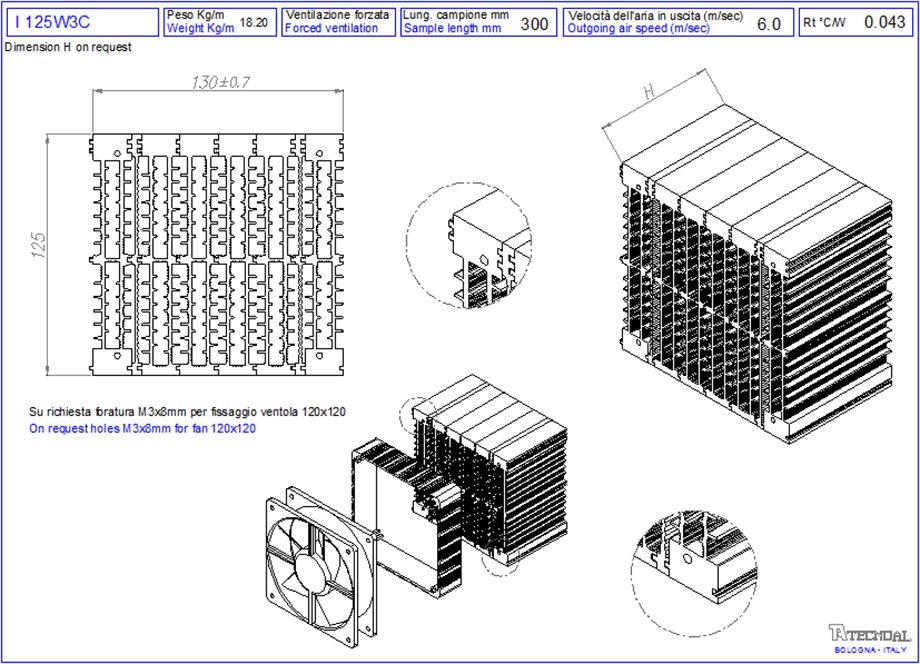

I125W3C

125 mm 18.2 kg 130 mm 0,100 mm

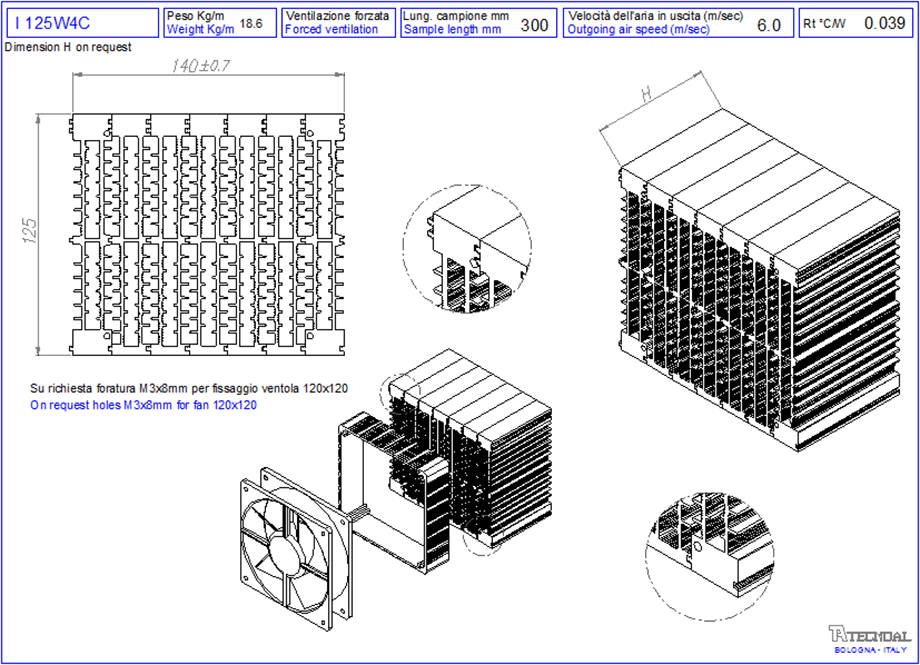

I125W4C

125 mm 18.6 kg 140 mm 0,100 mm

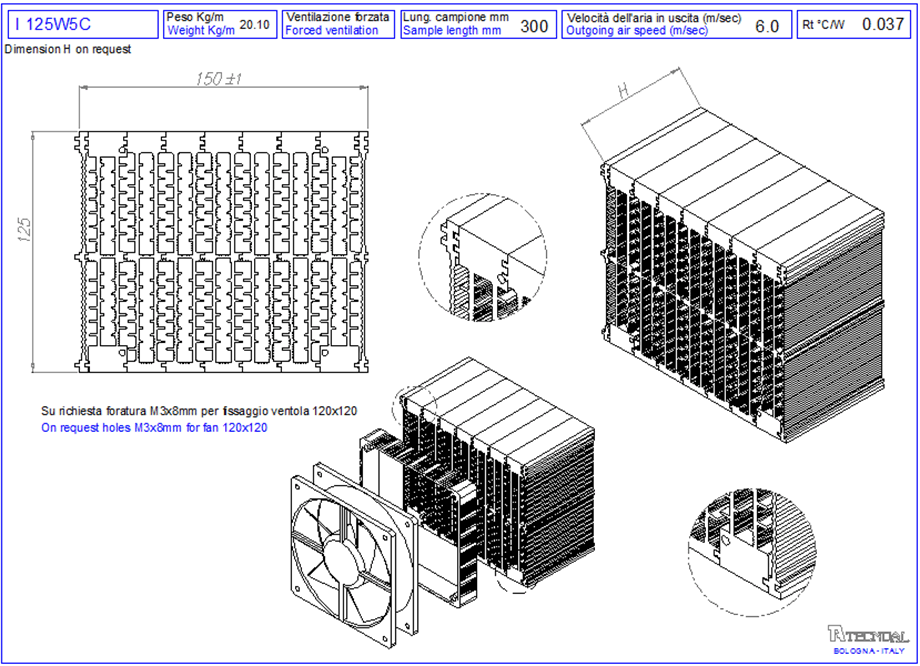

I125W5C

125 mm 20.1 kg 150 mm 0,100 mm

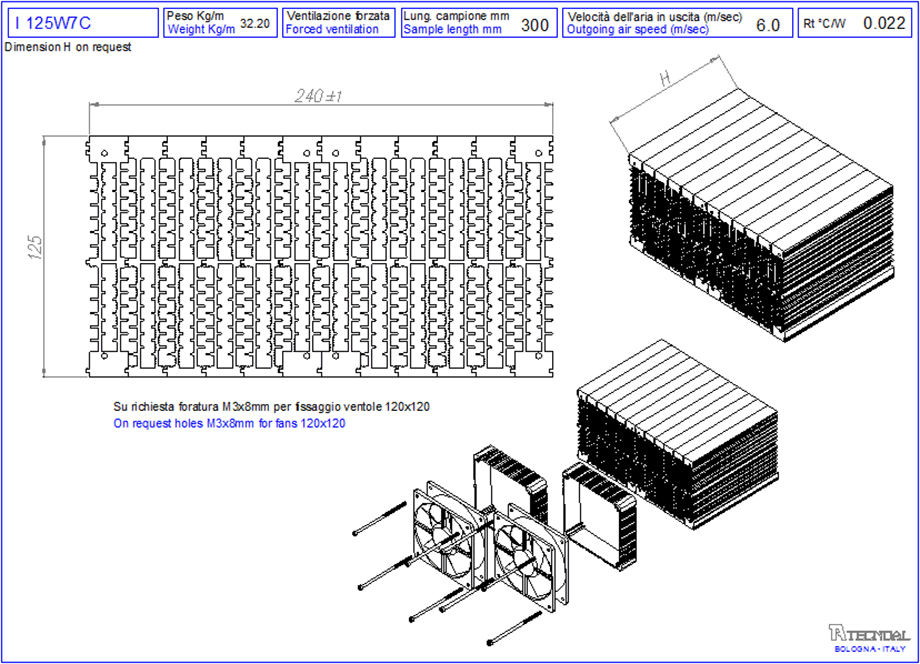

I125W7C

125 mm 32.2 kg 240 mm 0,100 mm

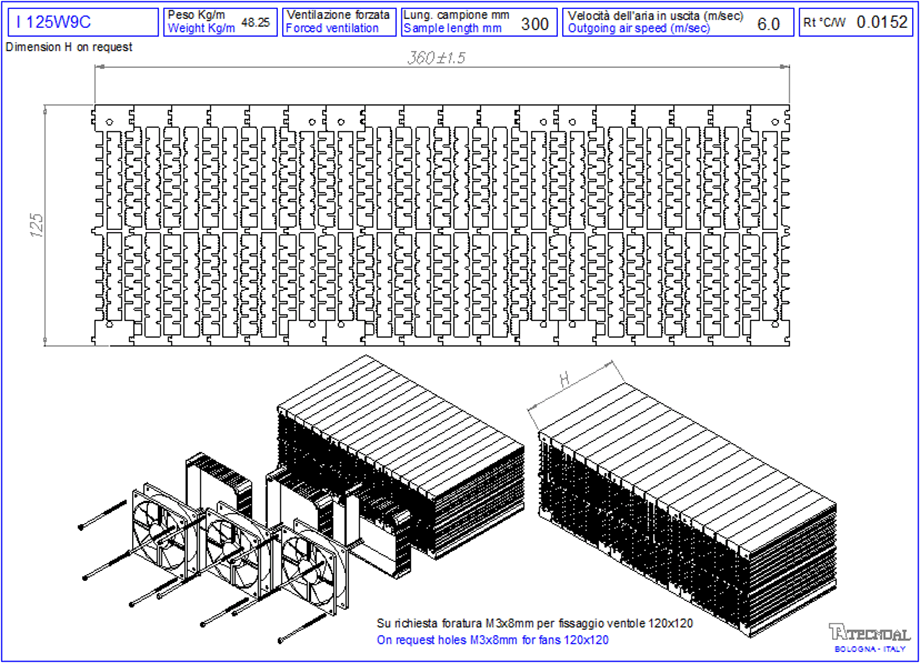

I125W9C

125 mm 48.25 kg 360 mm 0,100 mm

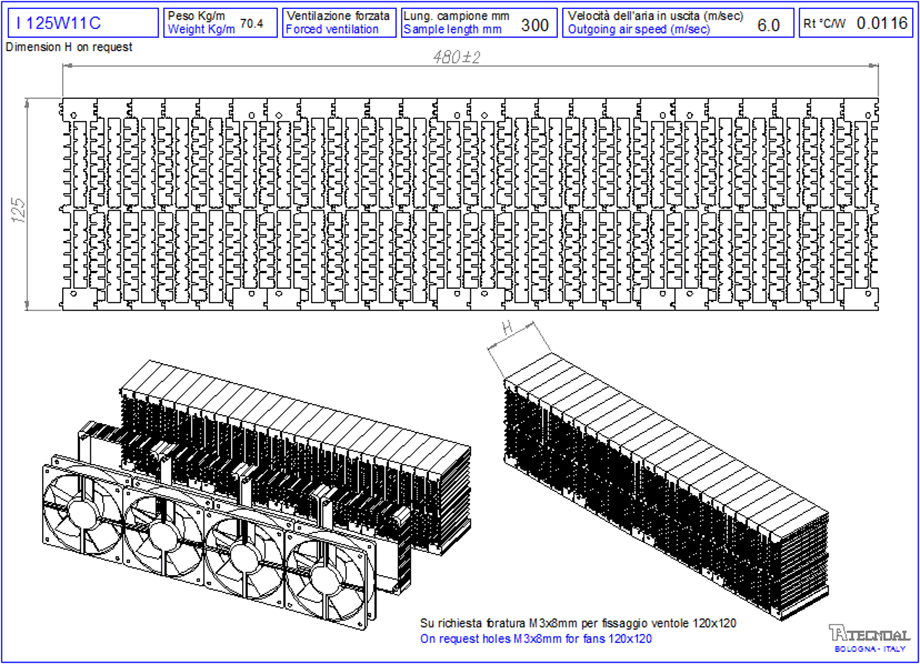

I125W11C

125 mm 70.4 kg 480 mm 0,100 mm
