T series profiles

Heatsink with one or more areas to fix TO series components.

Advanced Search

Advanced Search ;

Fill the fields to find the best profile for your needs

Please enter item name in ID field and press enter to start searching our database.
If you don’t know your item ID, please use our search filters.

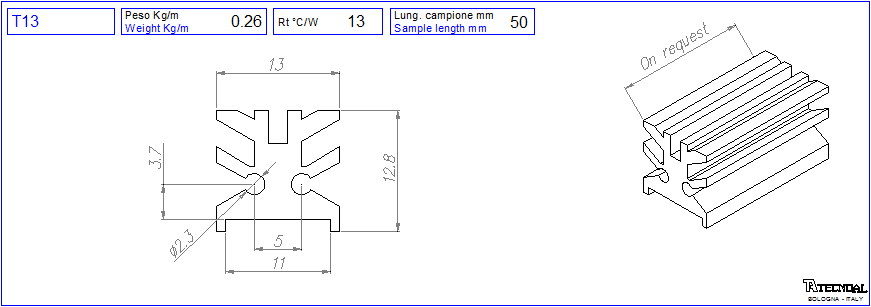

T13

13 mm 0.26 kg 13 mm 0,100 mm

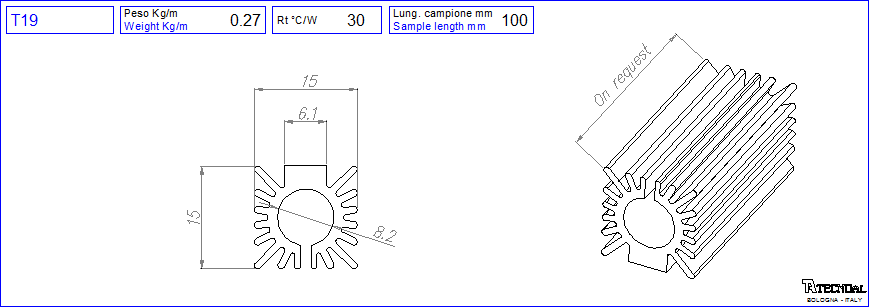

T19

15 mm 0.27 kg 15 mm 0,100 mm

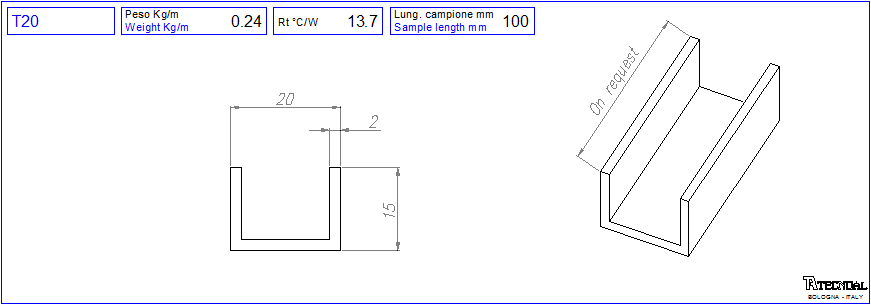

T20

15 mm 0.24 kg 20 mm 0,100 mm

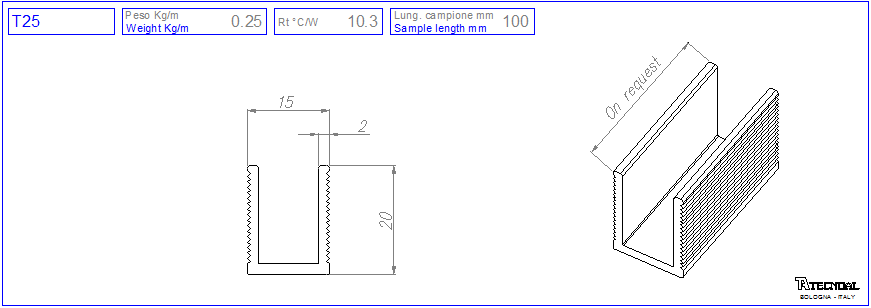

T25

20 mm 15 mm 0,100 mm

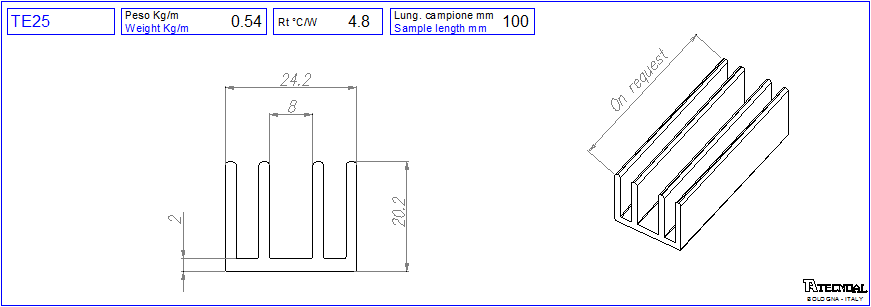

TE25

20 mm 0.54 kg 24 mm 0,100 mm

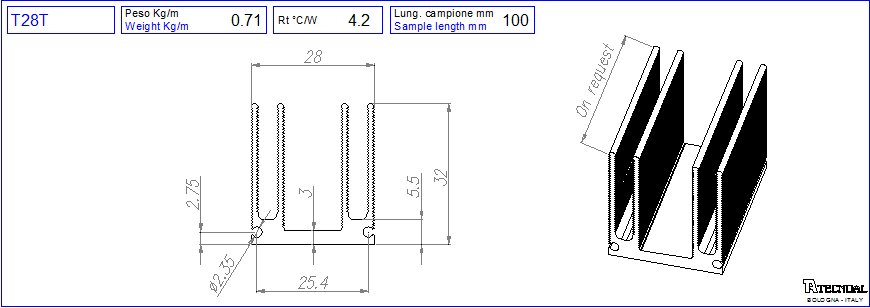

T28T

32 mm 0.71 kg 28 mm 0,100 mm

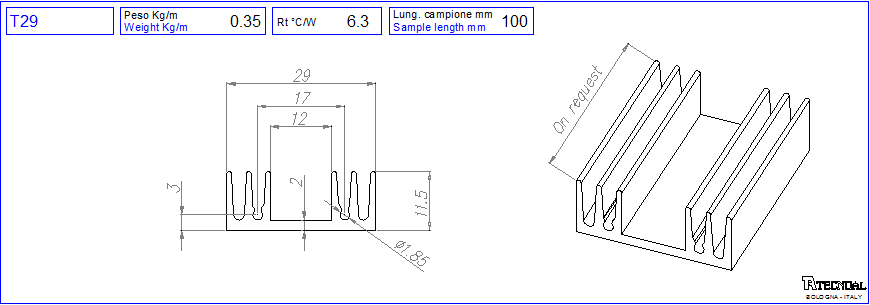

T29

11.5 mm 29 mm 0,100 mm

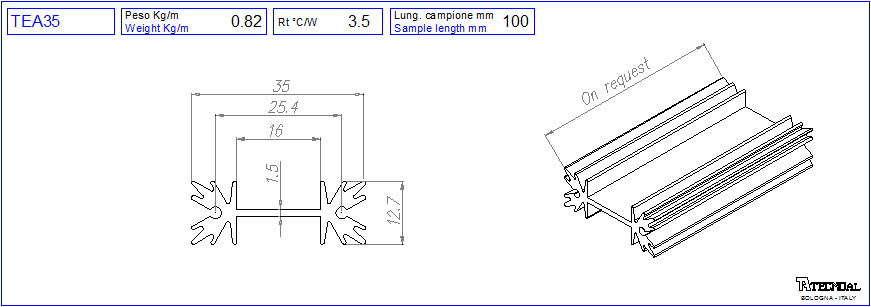

TEA35

13 mm 0.82 kg 35 mm 0,100 mm

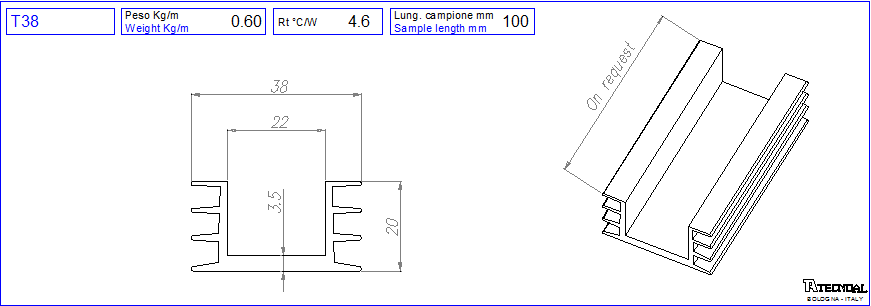

T38

20 mm 0.6 kg 38 mm 0,100 mm

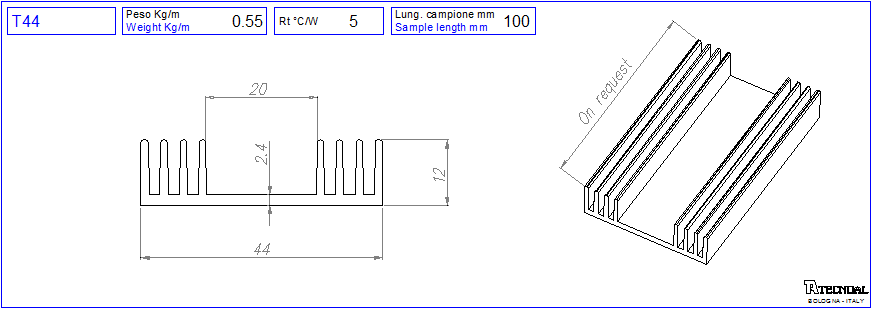

T44

12 mm 0.55 kg 44 mm 0,100 mm

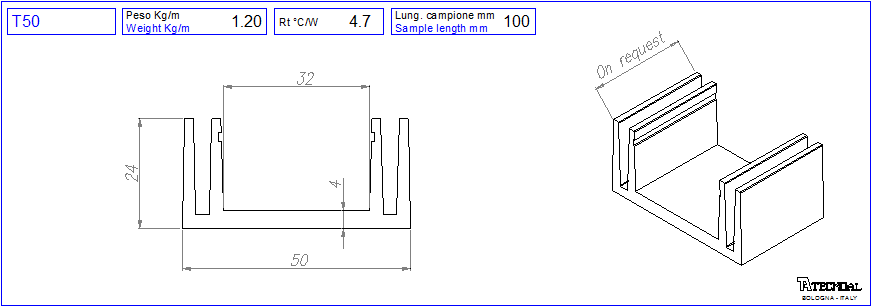

T50

24 mm 1.2 kg 50 mm 0,100 mm

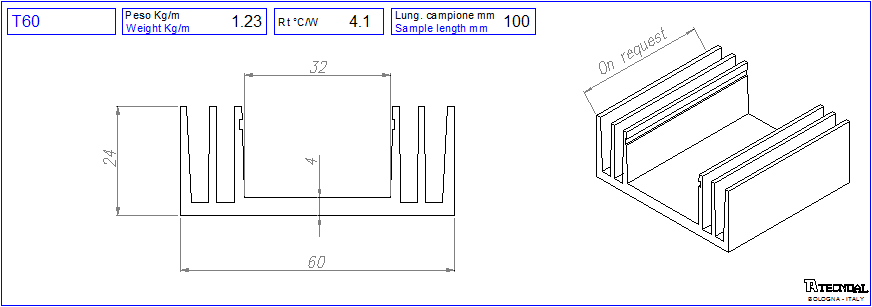

T60

24 mm 1.23 kg 60 mm 0,100 mm

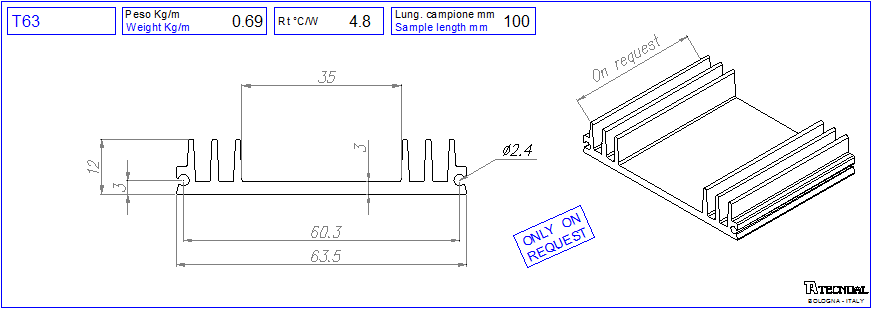

T63

12 mm 0.69 kg 64 mm 0,100 mm

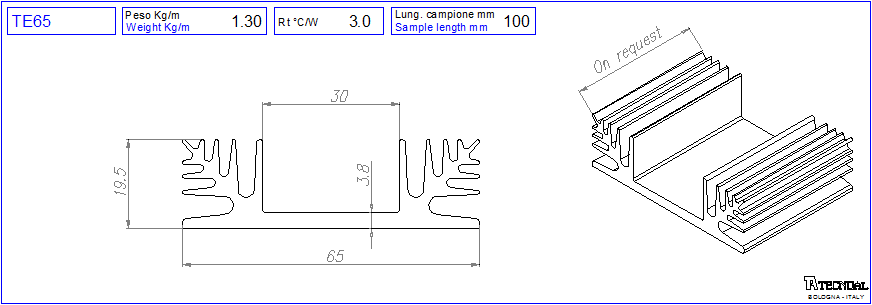

TE65

20 mm 1.3 kg 65 mm 0,100 mm

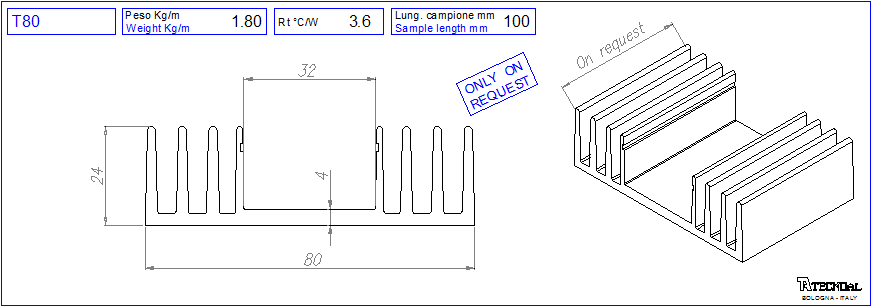

T80

24 mm 1.8 kg 80 mm 0,100 mm

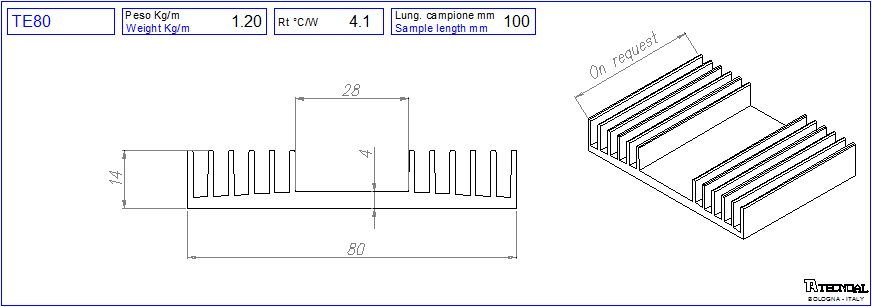

TE80

14 mm 1.2 kg 80 mm 0,100 mm

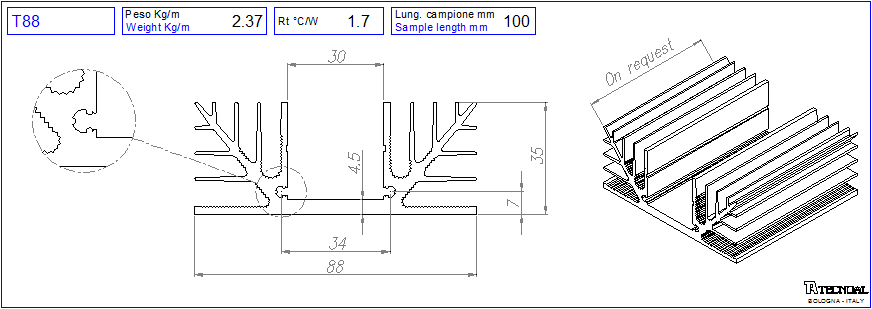

T88

35 mm 2.37 kg 88 mm 0,100 mm

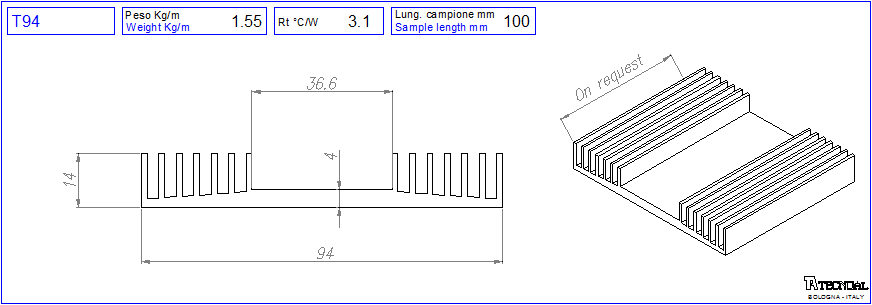

T94

14 mm 1.55 kg 94 mm 0,100 mm

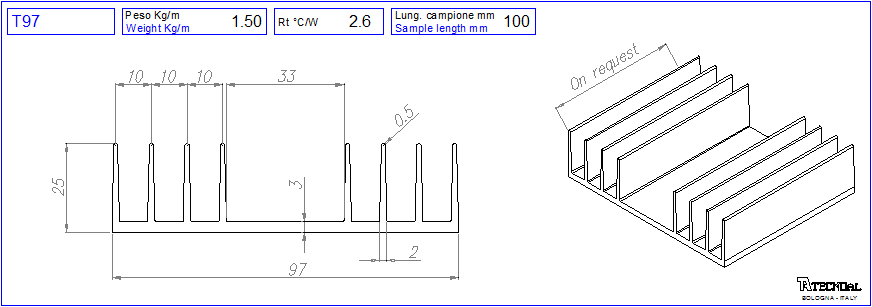

T97

25 mm 1.5 kg 97 mm 0,100 mm

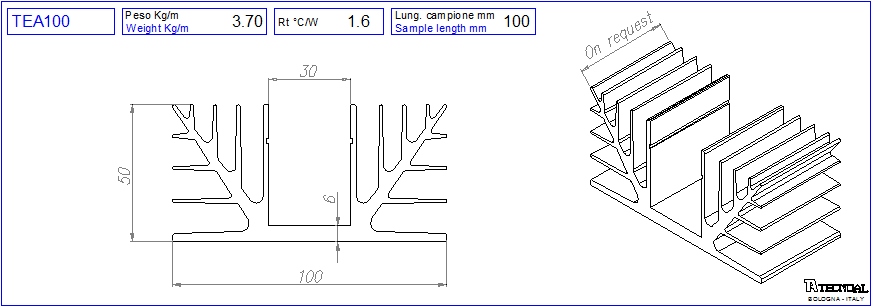

TEA100

50 mm 3.7 kg 100 mm 0,100 mm

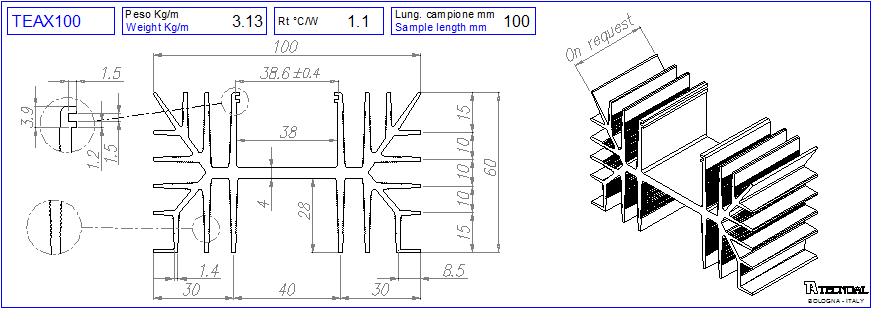

TEAX100

60 mm 3.15 kg 100 mm 0,100 mm

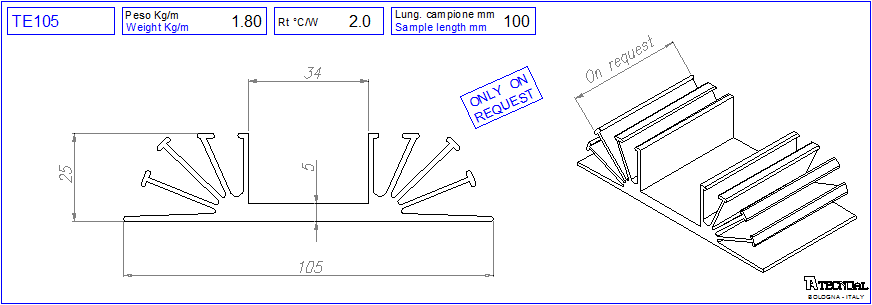

TE105

25 mm 1.8 kg 105 mm 0,100 mm

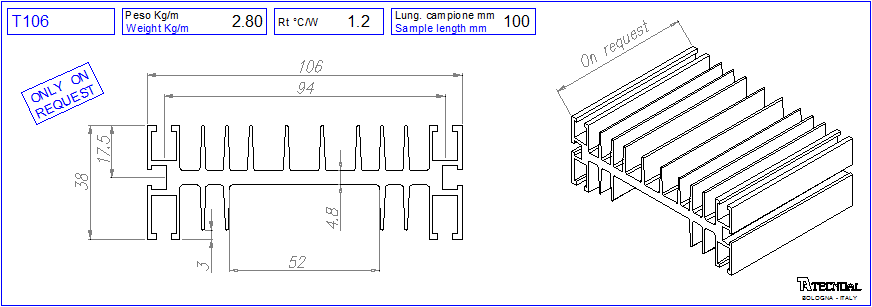

T106

38 mm 2.8 kg 106 mm 0,100 mm

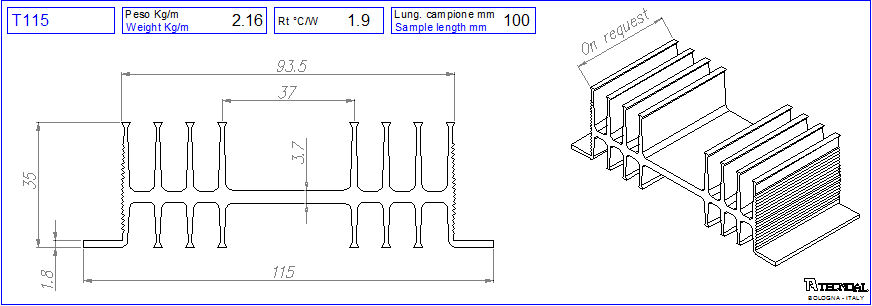

T115

35 mm 2.16 kg 115 mm 0,100 mm

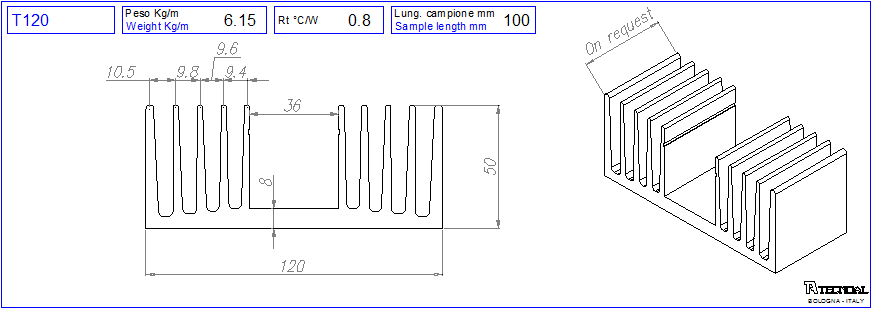

T120

50 mm 6.15 kg 120 mm 0,100 mm

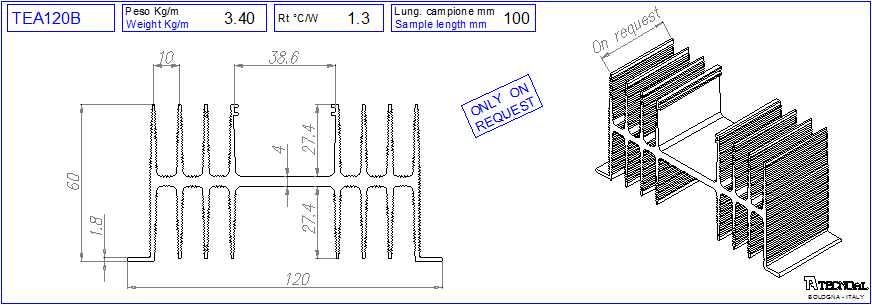

TEA120B

60 mm 3.4 kg 120 mm 0,100 mm

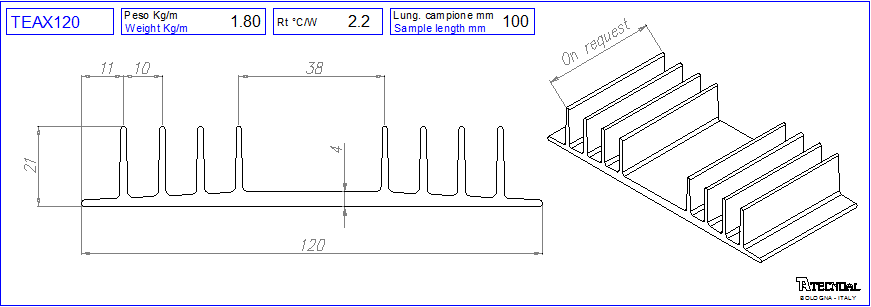

TEAX120

21 mm 1.8 kg 120 mm 0,100 mm

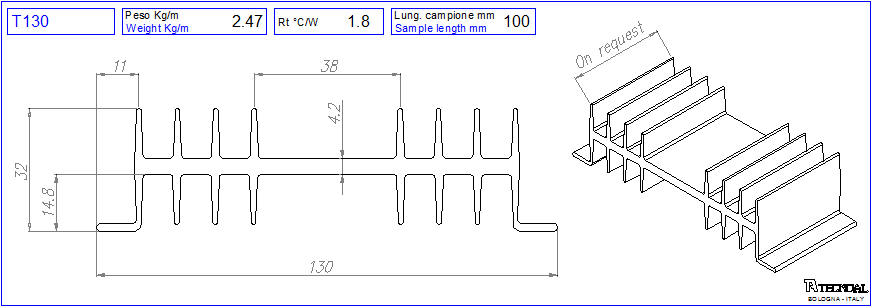

T130

32 mm 2.47 kg 130 mm 0,100 mm

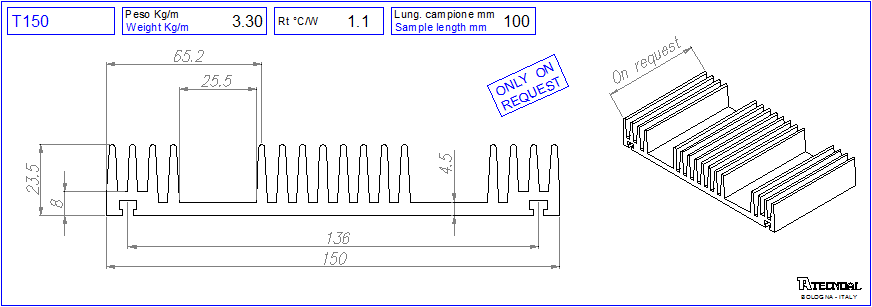

T150

23.5 mm 3.3 kg 150 mm 0,100 mm

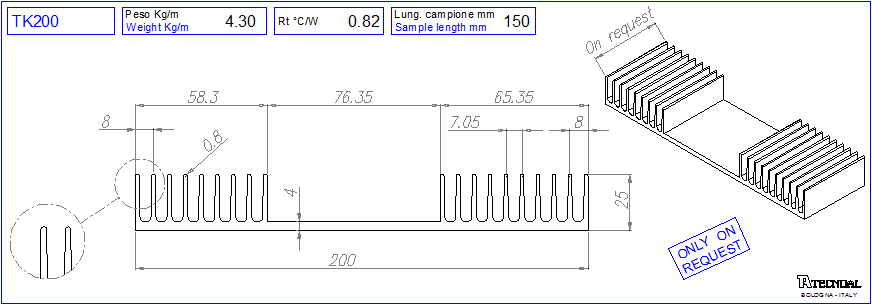

TK200

25 mm 4.3 kg 200 mm 0,100 mm

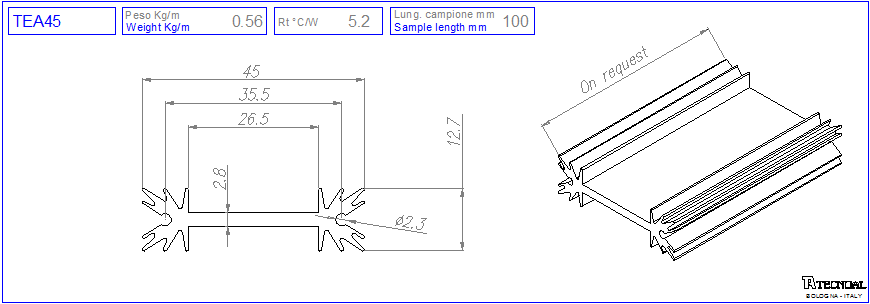

TEA45

13 mm 45 mm 0,100 mm
