Series AM profiles

Profile with high thermal inertia, with the possibility to mount components using clips.

Advanced Search

Advanced Search ;

Fill the fields to find the best profile for your needs

Please enter item name in ID field and press enter to start searching our database.
If you don’t know your item ID, please use our search filters.

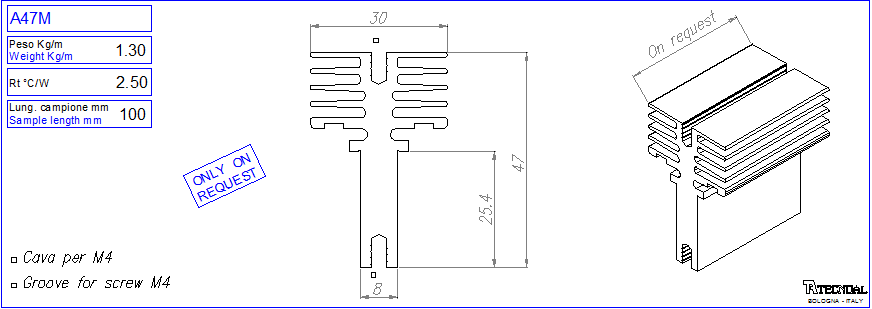

A47M

47 mm 1.3 kg 48.15 mm 30 mm 0,100 mm 2.5 c/w

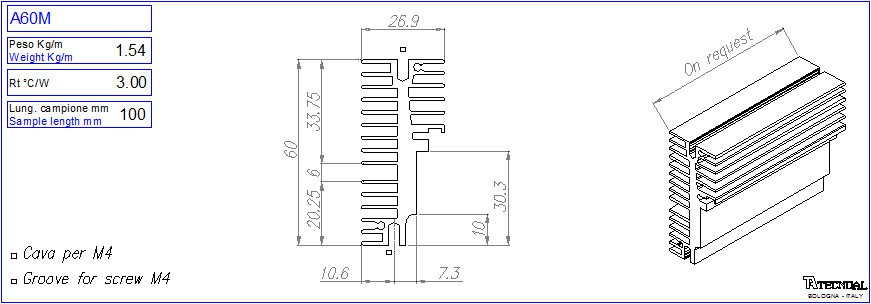

A60M

60 mm 1.54 kg 27 mm 0,100 mm 1.45 c/w

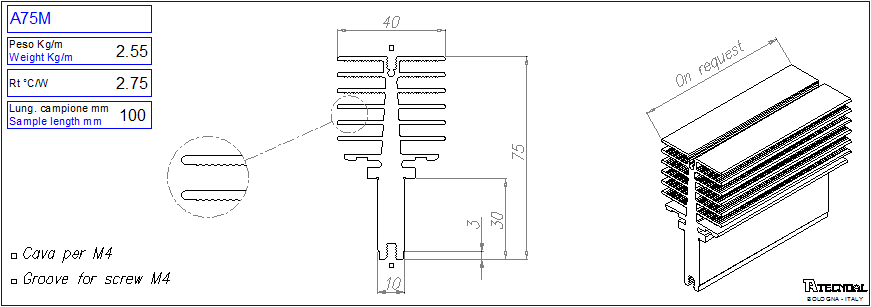

A75M

75 mm 2.55 kg 94.44 mm 40 mm 0,100 mm 1.5 c/w

A82M

82 mm 2.6 kg 40 mm 0,100 mm 1.26 c/w

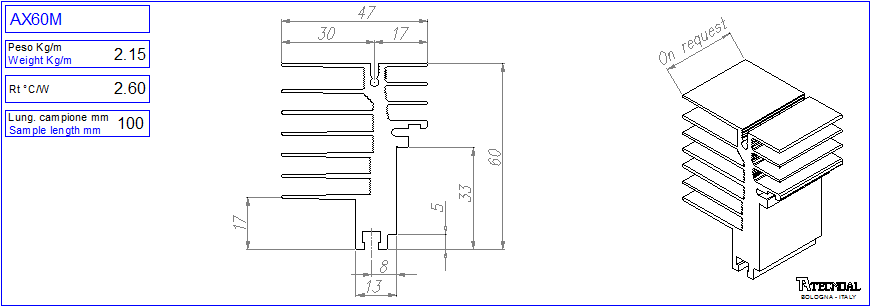

AX60M

60 mm 215 kg 47 mm 0,100 mm 2.6 c/w

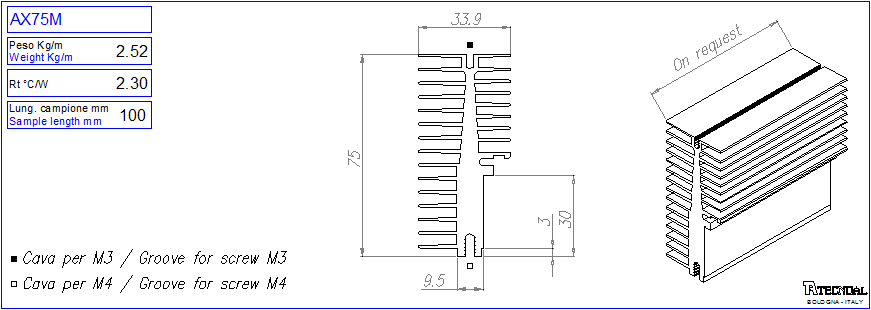

AX75M

75 mm 2.52 kg 34 mm 0,100 mm 1.3 c/w

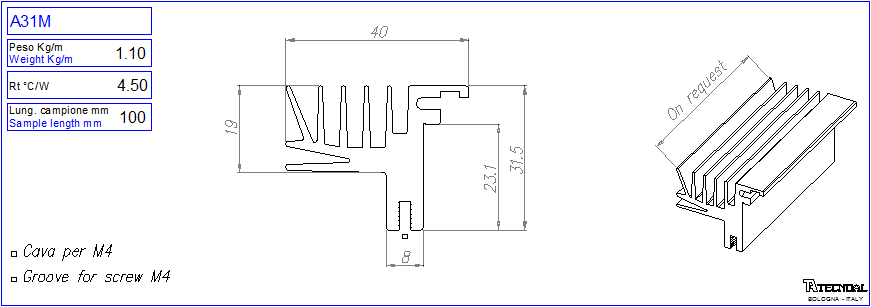

A31M

31.5 mm 1.1 kg 40 mm 0,100 mm 4.5 c/w
